Product Details:
Payment & Shipping Terms:
|
Aplication: | Salt Spray Machine | Warranty: | 12 Months |
---|---|---|---|
Usage Strength: | Test Chamber | Power: | 1φ、220V/50HZ |
Spray Capacity: | 1~10cc/h | Structure Material: | F.R.P |
Standard: | ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371 | Internal Size: | 90×60×50cm |
High Light: | salt spray test machine,salt fog test chamber |

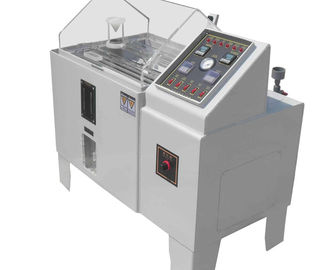

220V/50HZ 108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test
Uses:Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test,such as electroplating,anode processing,conversion coating ,painting and etc.
Specifications:
Item | Salt Spray Chamber ASTM B368/D1654/E691/G85 Climate Salt Spray Machine | |||
Inner Size (cm) | 60×45×40 | 90×60×50 | 120×100×50 | 200×120×60 |
Outside Size | 107×60×118 | 141×88×128 | 190×130×140 | 270×150×150 |
Capacity | 108L | 270L | 600L | 14400L |
Temperature | Lab: NSS.ACSS35℃±1℃ / CASS 50℃±1℃ | |||
Saturated air cylinder | NSS.ACSS35℃±1℃ / CASS 50℃±1℃ | |||
Spray Capacity | 1~10cc/h | |||
Structure Material | F.R.P | |||
Accessories | Test salt, barrel, tool | |||
Powder | 1 phase, 220V/50Hz |
Cabinet material:
(1) Test chassis body with light gray PVC plates, a thickness of 8mm, durable temperature at 65 ° C.
(2) laboratory sealed cover transparent brown PVC board, thickness 8mm, high temperature does not distort the deformed, with opening the lid pole can be opened lid angle, saving installation space,
(3) Hide integrated reagent supplement bottles, easy to clean, easy to operate.

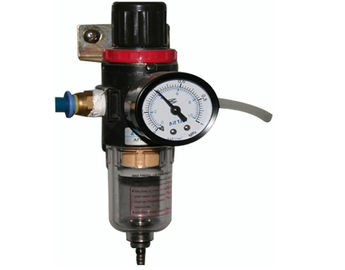

(4) pressure air barrel SUS # 304 stainless steel high pressure barrel insulation effect.

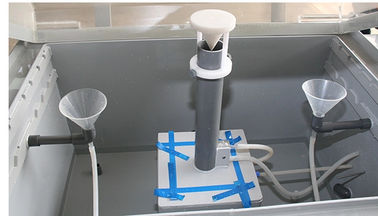

(5) three-tier test sample holder, freely adjust the the specimen angle and height, surrounded by uniform off the fog by fog completely consistent, accurate test results, the test sample is placed number. (Can be customized according to the requirements of the customer's product)
The technical basis:
In accordance with GB/T2423.17, GB/T10125-1997, GB10587, GB6460 GB10587 GB1771, ASTM-B117 GJB150 DIN50021-75, ISO-9227, ISO3768, ISO3769, ISO3770, CNS 362/3885/4159/7669/8866 JISD-0201/H-8502/H-8610/K-5400/Z-2371, NSS, ACSS, CASS standard parameters of operation set.
Product details:
Pictures:
