Product Details:
Payment & Shipping Terms:
|
| Load Resolution: | 1/25000 | Accuracy: | ≤0.5% |
|---|---|---|---|
| Test Speed: | 0.005~500mm/min | Power System: | Panasonic AC Servo Motor + Drive |
| Software Features: | The Units Select G, Kg, N, KN, LB | Model: | High And Low Temperature |
| Humidity Range: | 20%RH~98%RH | Inner Dimension: | 40*40*70cm |
| Power: | 1∮,AC220V/50HZ | Temperature&humidity Control: | Korea TEMI880 |
| High Light: | tensile strength instrument,universal tensile testing machine |
||

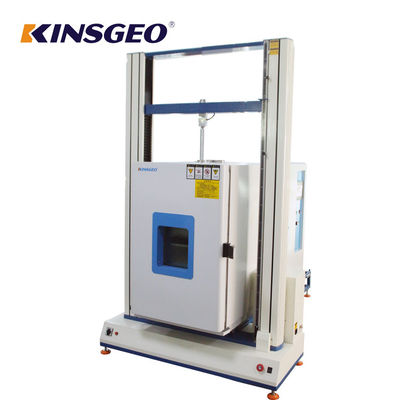

Computer high and low temperature tensile testing machine
Applications:
Uses
This machine combines high-low temperature tester with tensile peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process.Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.
This machine is applicable to metal, cementing compound, tubes, sectional bars, aerospace, petrochemical, waterproof rolls, wire and cable, textile, fiber, rubber, ceramics, food, mechanical packaging, geo-textile, film, wood, paper and other industries and quality supervision department, and it also can be used in college for teaching demonstration.
Adopting precise auto control and data acquisition system to realize fully digital adjustment to data acquisition and control process. During tensile test, it can test max. bearing tensile, compression, tensile strength, deformation, elongation and other technical specifications;
After tensile test, the above parameters can be calculated automatically through main controller according to the test parameters, which are set before test and meantime display the corresponding test results. All test parameters can be saved and inquired after test, also can be connected with printer to print test reports.
Features
Technical Parameters——High-Low Temperature/Humidity tensile Tester
| Capacity: |
10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN,20KN( can select double capacities reparation) |
| Temp. Range: | -40℃~150℃ (can require to make a higher temperature) |
| Display: | Computer display mode |
| Force Resolution: | 1/250,000 |
| Force Accuracy: | ≤±0.5% |
| Stroke Resolution: | 0.005mm |
| Control Mode: | All computerized operation mode |
| Temp. Control: | PID automatic calculation, stable error |
| Circulation System: | Fan force circulation system |
| Heating System: | SUS304 stainless steel heat radiation type of heater |
| Protection Device: | Leakage and overload protector |
| Test Stroke: | 150~200mm |
| Chamber Dimension: | 30×30×60cm(L×W×H) |
| Test Speed: |
0.5~500mm/min, set by computer, with up & down fast adjustment button of grips |
| Force Unit Switch: | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode: |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
| Machine Drive: | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power: | 2KW |
| Machine Weight: | Approx 220kg |
| Power Supply: | 220V 50/60HZ 30A |
Character:
1. The machine structure using high-grade paint built-in high-precision, low resistance, no gap double ball screw and guide column, improve the load efficiency and structural rigidity.
2. The control system using Panasonic AC servo motor to ensure high efficiency rotary system, smooth transmission, low noise, high speed control accuracy.
3. The computer system using a commercial computer as the main control machine, with the company's special test software, to complete all the test parameters set, working state control, data acquisition and processing analysis, the results show and print output.

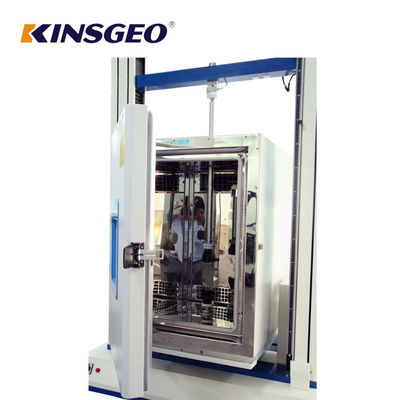

4. High and low temperature test chamber with double insulated glass door, user-friendly observation of the test situation, and the use of all stainless steel frame and liner, not only beautiful, and strong corrosion resistance.
5. The instrument structure is reasonable, can be separated or combined test, can be split into constant temperature and humidity testing machine and stripping test machine use;
Contact Person: Miss. Silivia Zhang
Tel: 86-13925519875
Fax: 86-0769-28638013
