Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic, 1, AC220V/50Hz | Usage: | Abrasion Tester |
|---|---|---|---|
| Specimen Size: | ED:108mm ID:8mm ,3mm | Rotating Speed: | 60/72 Rpm |
| Counter: | 250g, 500g, 1000g | Wheel And Spec: | 37~38mm |
| Weight: | 18.00KG | Design Criteria: | DIN-53754 |
| High Light: | leather softness tester,material testing equipment |
||

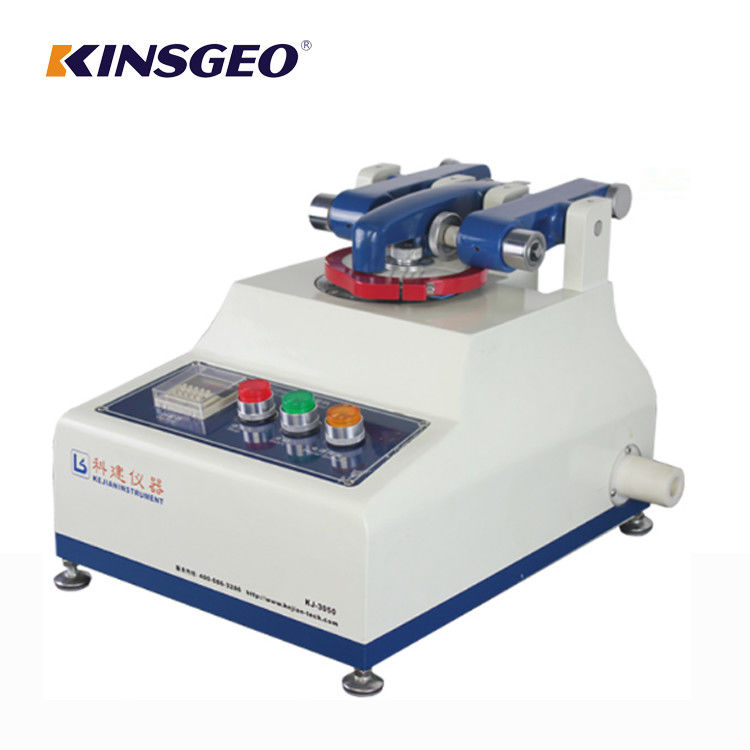

Taber Wear Rotary Abrasion Tester and wear testing machine can be replaced by wheel and weight,
which apply to the abrasion resistance performance test on fabric, cardboard, paint, leather, tile, glass and natural rubber,
method is simple and easy to operate,which has been widely used in various industry's testing laboratory.
Abrasion tests, the material is standard wheel friction after a certain number of turns,
evaluate its abrasion resistance material weightlessness rate by calculation.
Abrasion wheel after pre grinding standard method, test results can reach very high consistency.
Core advantages
Simple operation, display real-time speed, the speed control can be achieved 30-75rpm adjustment,
wearing can be preset number of turns. Arm can match with balance weights, accurate weight balance abrasion arm,
to realize the ASTM standard which requires 125 g pressure requirements
Vacuuming mouth height is adjustable, and adapt to different thickness materials, efficient removal of debris, improve test accuracy
Brand motor, mute, low noise, smooth operation
Applicable Standards
ISO 9352, ISO 5470, ISO 7784, ASTM D1044, ASTM D3884, ASTM D4060, GB/T 5137.1, QB/T 2726, DIN 53109
Specifications
| spinning speed | adjustable within the range of 30-75r/min (digital) |
| The sample surface diameter | 100mm |
| Sample table diameter | 113mm |
| setting range of Number of turns | 1-999999 |
| Air pressure | 250g |
| Weight (based on purchase) | Counterweight,250g,500g,750g,1000g |
| Wheel pressure range | 125g,250g,500g,750g,1000g,1250g |
| Vacuum arm height | Adjustable |
| power | 220V,50Hz |
| Size | 220mm×380mm×300mm |
| weight | 20kg |
Basic configuration
| G270 | Taber Abrasion Resistance Tester | |
| (250g,500g,1000g) Weight × 1 set (250g, 500g, 1000g each one pairs) |
||
Accessories
| 27001 | 1 pair of 125g Balance weights and fixed screw | |
| 27002-1 | 1 pair of Import original abrasion wheel CS-10×1 | |
| 27002-2 | 1 pair of Import original abrasion wheel H-18×1 | |
| 27003 | Import the original decoration sandpaper (grinding disc) S - 11 x 1 package (100 pieces/package) | |
| 27004 | Import original sample sticker S - 36 (50 / package) | |
| 27005 | Diamond wheel polisher (friction wheel polishing Taber) | |
| XC001 | One set of the vacuum cleaner | |
Product description:
This machine is used for leather, cloth, coating, paper, floor tile, plywood, glass, natural rubber wear-resistant test.
The main technical parameters(Taber Abrasion tester):
| Specimen Size: | ED:108mm ID:8mm ,3mm |
| Abrasion Wheel: | 2"(max.45mm), 1/2"(W) |
| Wheel Center Distance: | 63.5mm |
| Rotating Speed: | 60/72 rpm |
| Load: | 250g, 500g, 1000g |
| Counter: | LCD Touch screen, 0-999,999 Automatic shutdown |
| Wheel and Specimens disk center space: | 37~38mm |
| Machine Size: | (L*W*H)530*320*310mm + vacuum cleaner |
| Weight: | 18kg (Excluding vacuum cleaner) |
| Power: | 1, AC220V/50Hz |
| Wear index calculation formula: | Abrasion loss weight/test turnover number×1000 |
| Design criteria: | DIN-53754, 53799,53109,52347, TAPPI-T476, ASTM-D1044,D3884, ISO-5470 |
| Specimen Size: | ED:108mm ID:8mm ,3mm |
| Abrasion Wheel: | 2"(max.45mm), 1/2"(W) |
| Wheel Center Distance: | 63.5mm |
Accessories:
- One vacuum cleaner machine
- One H10 wheel
- One box of abrasive papers for recondition the wheel
- Load 250,500 and 1000g
