Payment & Shipping Terms:
|Aplication:||Salt Spray Machine||Warranty:||12 Months|
|Usage Strength:||Test Chamber||Power:||1φ、220V/50HZ|
|Spray Capacity:||1~10cc/h||Structure Material:||F.R.P|
|Standard:||ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371||Internal Size（cm）:||120&100&50cm|
salt spray cabinet,
salt fog test chamber

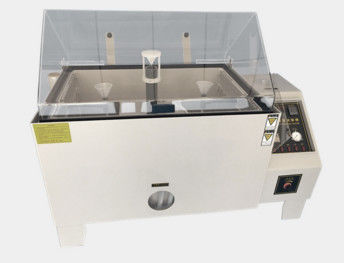

600L 120 X 100 X 50cm Salt Spray Test Chamber With 1φ 220v 50hz Painting Chamber
Salt Spray Test Equipment has a standardized test method to check corrosion resistance of coated samples. Salt spray test is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
1. the spray nozzle the heart of tester adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. the controller is digital type microcomputer which delivers precision temperature
3. parameters show on the display screen such as temperature, humidity, pressure, spray capacity and time.
4. test specifications are accept world wild.
|Design standard||ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371|
|Temperature||lab: NSS.ACSS35℃±1℃ / CASS 50℃±1℃|
|Saturated air cylinder||NSS.ACSS35℃±1℃ / CASS 50℃±1℃|
|Accessories||test salt, barrel, tool|
Temperature control:Control the chamber temperature, according to standard, salt test is 35°C, and corrosion test is 50°C.
Saturated air barrel temperature controller:Control the saturated air barrel temperature, salt test is 47°C, corrosion test is 63°C.
Timer:Adjustable, can set the time in 0.1s~9999hr free, shut down automatically when the time is over.
Running timer:Direct read 0-9999.9hr, record the whole work hours.
Heat sink temperature controller:Control the temperature of heat sink, Controller with temperature control of the testing machine laboratory environmental temperature changes around the difference is too large, also need to meet the adjustments, the setting method in the control box.
Salt test :Chamber temperature set 35°C, heat sink temperature set is 47°C(40°C-50°C).
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
The main technial parameters:
|Inner Box Size (L×W×H)||60×45×40 cm|
|Outside Box Size(L×W×H)||107×60×118 cm|
|Equipment Material||Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board|
Test Chamber Temperature
|Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C
|Saturated air Barrel Temperature||Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C
|Spray Quantity||1.0~2.0 ml / 80cm2 / hr|
|PH||Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
|Brine Tank Capacity||15L|
|Multiple Safety Protection Devices||Current discharge protection, over pressure protection, over temperature protection, over load fuse protection|
|Accessories||Testing Salt/ Measuring tank/ Equipment each 1 set|
|Standard||CNS: 3627, 3385, 4159, 7669, 8886;
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770;
ASTM: B117, B268
