Temperature: | (15-35)℃ | Impact Speed: | 3.5m/s |
---|---|---|---|
Impact Energy: | 1J,2.75J,5.5J,11J,22J | Bob Angle: | 150°±1° |
Impact Center Distance: | 335mm | Impact Blade Fillet Radius: | 0.8±0.5mm |
Distance From Impact Blade To Jaw: | 22±0.2mm | Weight: | 80KG |
Outside Size: | 560* 300* 840mm | ||
High Light: | fallindart impact test equipment,plastic testing equipment |
Uses:

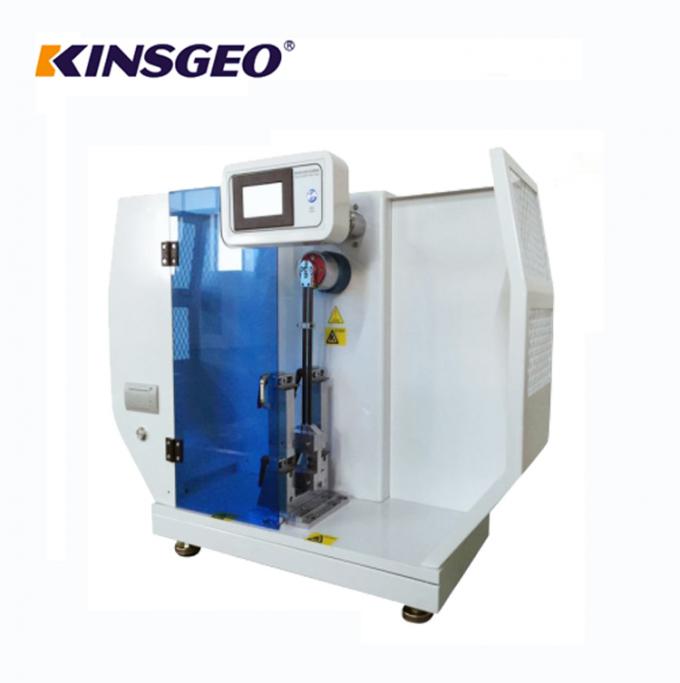

Digital izod impact testing equipment is used to test the impact toughness of the non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic appliance and insulation materials. It is widely used in the scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment. The instrument takes a simple structure and takes convenient operation and high testing precision to meet the standard demand of ISO179—92, GB1043—93. E-type impact testing machine adopts circular grating angle measurement technology to measure the impact strength, pre-elevate angle ,up angle and the average angle digitally. Owing to the functions of energy loss correction and test report printed automatically ,the izod impact testing equipment has the advantages of high precision , good stability and wide measurement range .
The digital izod impact testing equipment is in line with international standard ISO180-1992”plastic-hard materials-determination of izod impact strength”, national standardGB/T1843—1996”rigid izod impact test method” and the machinery industry standard ”plastic izod impact testing machine”.
Plastic Rubber Izod Impact Strength Test Equipment for plastic pipes, plates, profiles and engineering plastics, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials resistant to impact toughness.
Machine performance:
Plastic Rubber Izod Impact Strength Test Equipment has a clear function; energy loss measurement and automatic compensation function; strength, standard deviation, and other functions automatically calculate impact. Izod clamp jaws wedge from mouth, clamping freely, fast clamping, is the latest development of our new products.
Standards:
Compliance with IS0180, ASTM256, GB / T1843, GB / T2611, JB / T 8761 and other standard Huai requirements.
Model: | KJ-XB5.5 | KJ-XB22 |
Impact speed: | 3.5m/s | |
Pendulum energy: | 1.0J, 2.75J, 5.5 J | 11J 22J |
Pendulum up angle: | 150degree | |
Impact center distance | 335mm | |
Test accuracy: | ±0.1% | |
Resolution: | 1% | |
Distance from impact blade to clamp: | 22.0mm±0.2mm | |
Blade fillet radius: | R=0.8mm±0.2mm | |
Energy loss: | 1.0J-2%, 2.75J-1%, 5.5J-0.5% | 11J,22J-0.5% |
Tester size(L*W*H) | (830x300x890)mm |
Digital izod impact testing equipment standard configuration
item | name | quantity | unit |
host | Impact testing machine | 1 | set |
attached | 1J ballistic pendulum | 1 | set |
2.75J impact weight | 1 | couple | |
5.5J impact weight | 1 | couple | |
model | 1 | piece | |
wrenth | 1 | set |
FAQ
1. Q: What is your warranty ?
- 12 months product warranty, but lifetime for services.Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.
Tensile Testing Machine
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
Tensile Testing Machine
3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory+ trade (integration),18 years focusing on test instruments field,9 years exporting experience.,warmly welcome to visit our plant(factory), we also support OEM and ODM.
Tensile Testing Machine
4. Q: After an order is placed, when to deliver?
- Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
5. Q: What about the warranty with after - sales services?
- 12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory.
What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.
Tensile Testing Machine
6. Q: What about the services and product' quality?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Engineers would be go abroad to training, repair and others help you need.
