Product Details:
Payment & Shipping Terms:
|
Usage Strength: | Testing Machine | Operation: | Manual+Automatic |
---|---|---|---|
Warranty: | 12 Months | Aplication: | Rubber |
Power: | AC220V±10% 50HZ | Standard: | GB/ T3682-2000 |
Output: | Mini-automatic Printout | Diameter Of Barrel: | Φ2.095±0.005mm |
Weights: | 1200g,2160g,3800g,5000g | ||
High Light: | rubber testing instruments,rubber testing equipment |

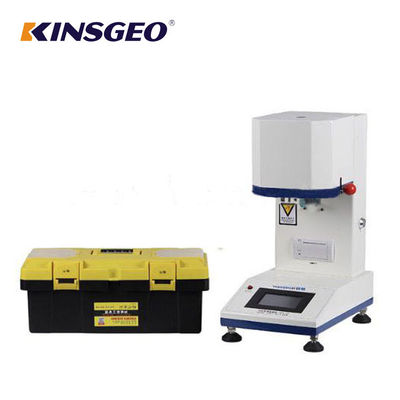

50HZ AC220V LCD Plastic Melt Flow Index MFI Tester with One Year Warranty
Introduction:
Melt Index Tester meets the standards GB/ T3682-2000, the main parameters of Melt Index Tester also meet the standard requirements of ISO1133-97, ASTM1238, JIS, ect.. It is used in polyethylene, polypropylene, polystyrene, ABS, polyethylene amide, fiber resin, acrylic, POM, fluorine plastic, polycarbonate, and other plastic materials, to measure MFR and MVR. It is widely applied to various industries like plastic production, plastic products, petrochemical, and related institutions, research institutes and inspection departments.
Characteristics:
High precision and Chinese-English color control, special custom membrane keyboard, incomparable advantages in the control precision and service life,
Integrated control of manual and automatic material-cutting, accurate to 0.1s, free set of cutting time and frequency..
Built-in mini printer can print testing data.
Dual temperature-control system uses dual imported heating coil, dual imported PT100 platinum resistance sensor, which can control the temperature independently in the upper and lower sections, to improve the degree of testing accuracy and temperature stability.
Increased displacement sensor can test MVR( volume method) with an accuracy of 0.001mm.
It can connect an computer via USB, and set the testing conditions in the computer software, to print and store data.
Testing Methods:
mass method, volume method( MFR, MVR)
Display:
Chinese and English color LCD
The main technical parameters:
Design standard | ASTM-D1238,D3368,JIS-K7210 |
Temperature range | Normal tempreture~400°C,PID control,Accuracy±0.1°C(including the Over temperature protection) |
Weights | 1200g, 2160g,3800g,5000g,10000g |
Automatic cropping device | Automatic cropping and manual operation(optional) |
Time setting | 0.1~999.9min Arbitrarily setting |
Cylinder | Diameter9.5504±0.0076mm |
Plunger | Diameter9.4742±0.0076mm |
Thin hole pattern | External diameter:9.5±0.02mm ,bore diameter2.0955±0.0051mm, lenth8.00±0.02mm |
Machine Size | (L×W×H)40×51×60cm |
Weight | 42kg(not including the weights) |
Power | AC220V,5A |
Accessory | Mercurial thermometer150°C,200°C,250°C,300°C(optional),one cleaning brush, one scraper, one guaid material stick, one observation mirror, one feedstock funnel, three frictioning steel disc, two thin hole pattern determine gauge |
Melt Flow Indexer is based on designed and manufactured according to latest national and international standards. Its advantage to combined various machine of domestic and international models: compact structure, beautiful appearance Based on designed and manufactured according to latest national and international standards.
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Pictures:
Company information:
Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.
Attend the fair:
Our company will attend the world's exhibitions every year and have dealers all over the world.The products sell well in Asia, Europe and America.Welcome to our booth.
Certifications and letters patent
We have CE and IOS certificates. If you need other special certificates, we can also help you
Packing &Delivery
