|MOTOR:||Panasonic Servo Motor||CONTROL:||PC|
|TEST SPEED:||0.1-500mm/min Selectable||ACCURACY:||±0.5%|
|CAPACITY:||5,10,20,25,50,100,200,500kg Optional||SENSOR:||USA Sensor|
|APLICATION:||Rubber ,plastic ,nylon ,leather And Etc||DESIGN STANDARD:||ASTM D903,GB/T16491 And Etc|
|GRIPS:||Different Material And Test Method With Different Grips||MAXIMUM TRIP:||1000mm|
tensile strength instrument,
universal tensile testing machine

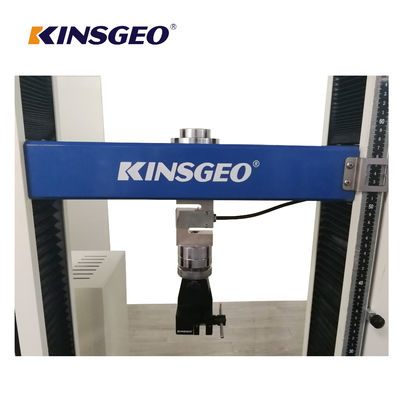

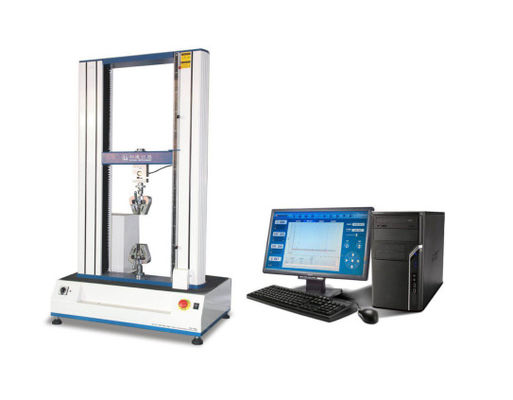

Panasonic Servo Motor Tensile Testing Equipment with Double Pole for Testing Rubber
Universal Tensile Testing Machine and Equipment is the double columns pulling and pressure testing machine,which is suitable for testing strength of plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and relevant physical parameters.
This machine is Widely used in textile manufacturing, furniture manufacturing industry related materials, all kinds of wire mesh, adhesive sticker pressure sensitive adhesive tape, film materials, medical electronic equipment protective film related industries.
Specifications of Universal testing machine
|Items||Tensile Testing Machine|
|Capacity||100. 200. 500. 1000. 2000. 3000. 5000. 10000kg|
|Unit Switchover||G, KG, N, LB|
|Display Device||LCD or PC / Tensile Testing Machine|
|Max. Stroke||1000mm (including fixture)|
|Test Speed||0.1-500mm/min (adjustable )|
|Motor||Panasonic Servo Motor|
|Screw||High Precise Ball Screw|
|Power||AC220V, 50HZ or customized|
|Weight||Approx.500kg / Tensile Testing Machine|
tensile clamp, computer system, English software CD, operation CD,
Universal Tensile Strength Testing Machine, Tensile Tester is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Main features of Universal Tensile Strength Testing Machine, Tensile Tester
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
