Product Details:
Payment & Shipping Terms:
|
| MOTOR: | Panasonic Servo Motor | CONTROL: | PC |
|---|---|---|---|
| TEST SPEED: | 0.1-500mm/min Selectable | ACCURACY: | ±0.5% |
| CAPACITY: | 5,10,20,25,50,100,200,500kg Optional | SENSOR: | USA Sensor |
| APLICATION: | Rubber ,plastic ,nylon ,leather And Etc | DESIGN STANDARD: | ASTM D903,GB/T16491 And Etc |
| GRIPS: | Different Material And Test Method With Different Grips | MAXIMUM TRIP: | 1000mm |
| Highlight: | universal test equipment,tensile strength instrument |
||

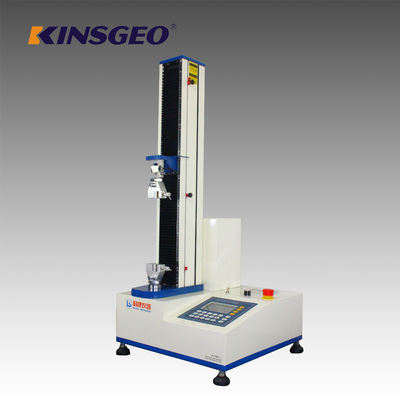

USA Sensor Computerized Tensile Testing Machine with Servo Motor for Testing Plastic
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,ASTM C633 and etc.
Uses:
Single Column Compression Testing Machine is designed specially for the adhesive industry. Used to testing peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.
KeJian tensile strength tester Uses:
Tensile strength tester is designed for quick and reliable tensile, compression, bending, shear, peel and fatigue cycling on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character:
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
1. APPLICATION: it is used for testing tension power of both metallic and non-metallic materials such as rubber, plastic, textile, waterproofing materials, wire and cable, safe belt, leather belt composite materials, net wire, steel, stainless steel, metal rod, plates and other materials. by using suit accessories, it can also perform compression, bending and flexure test.
2. SPECIFICATIONS:
| Models | STLLJ-1 | |
| Maximum test load | 10kN | |
| Resolution grade | 1 grade | |
| Load parameters | Force measurement range | 0.4%-100%FS(full-scale) |
| Force display deviation | Within ±1% of display value | |
| Test force resolution | ±1/300000 of maximum load | |
| Large deformation parameters | Large deformation test range | 10-800mm |
| Large deformation display deviation | Within ±1% of display value | |
| Large deformation measurement resolution | 0.008mm | |
| Displacement parameters | Displacement display deviation | Within ±0.2% of display value |
| Displacement resolution | 0.027μm | |
| Control parameters | Force control rate adjustment range | 0.005-5%FS/s |
| Deformation rate control range | 0.005-5%FS/s | |
| Test shelf rate control accuracy | Within ±0.2% of set value | |
| Constant force, constant deformation, constant displacement control range | 0.5%-100%FS | |
| Constant force, constant deformation, constant displacement control accuracy | Within ±1% of set value when set value≥10%FS | |
| Within ±1% of set value when set value<10%FS | ||
| Test shelf rate control | 0.001~500mm/min | |
| Host machine parameters | Outside dimension | 710mm×426mm×1570mm |
| Effective tensile space (including tensile fixture) | 650mm | |
| Effective compression space (including compression fixture) | 800mm | |
| Maximum beam movement | 900mm | |
| Effective test width | 410mm | |
| Power | 1 phase, 220V/50Hz,±10%, 0.4KW | |
| Machine weight | 180Kg | |
