Electronic Universal Testing Machine with AC 220 V Power, ±0.5% Accuracy, and 20kg Capacity for Tensile Testing

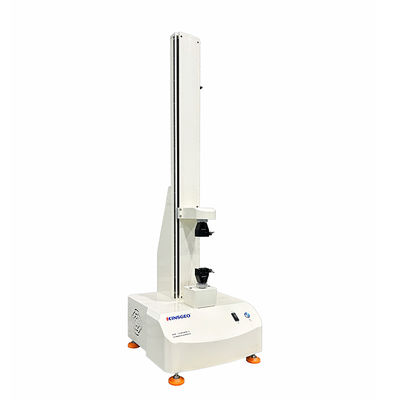

Large Image : Electronic Universal Testing Machine with AC 220 V Power, ±0.5% Accuracy, and 20kg Capacity for Tensile Testing

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1069A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/3800/SET
Packaging Details:	wooden case packing
Delivery Time:	15 work days
Payment Terms:	T/T,D/A
Supply Ability:	60Sets/month

Contact Now

Detailed Product Description

Power:	Electronic,AC 220 V	Usage:	Universal Testing Machine,Tensile Testing Machine
Weight:	90kg	Product Name:	Computer Control Single Column Universal Testing Machine
Power Supply:	Can Be Customized	Application:	Universal Tester
Standard:	BS.EN.ASTM	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Universal Leather Tensile Strength Test Machine	Capacity:	20
Stroke:	850 Mm (contain Clamps)	Resolution:	1/250
Test Space:	120mmMAX	Operation:	Computer Windows Operation
Highlight:	AC 220 V Universal Testing Machine , ±0.5% Accuracy Tensile Testing Machine , 20kg Capacity Computer Control Universal Testing Machine

Universal Electronic Tensile Testing Machine

Key Features

Computer-controlled operation with specialized testing software for comprehensive parameter control, data collection, analysis, and reporting
Stable speed, high accuracy, powerful software functionality, and user-friendly operation
Equipped with USA-manufactured high-precision load cell

Software Capabilities

Windows-based platform with intuitive dialog-based parameter configuration
Single-screen operation eliminates screen switching
Trilingual support: Simplified Chinese, Traditional Chinese, and English
Customizable test sheet templates
Real-time test data display
Multi-curve comparison through translation or contrast modes
Multiple measurement unit options with metric/imperial conversion
Automatic calibration function
User-defined test method capability
Advanced data analysis functions
Automatic magnification for optimal graphic display

Technical Specifications

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632
Model	KJ-1069
Speed Range	0.5~5000mm/min
Motor	Japan Panasonic Servo Motor
Stroke	1200mm (including grips)
Capacity Options	1, 2, 5, 10, 20, 50, 100, 200, 500kg (optional)
Resolution	1/250,000
Effective Testing Space	120mm MAX
Accuracy	±0.5%
Operation Method	Windows operation
Accessories	Two pair grips, software
Weight	80KG
Dimensions	(W×D×H) 58×58×125cm
Power	1PH, AC220V, 50/60Hz
Safety Features	Upper/lower stroke protection, force protection system, emergency stop device
