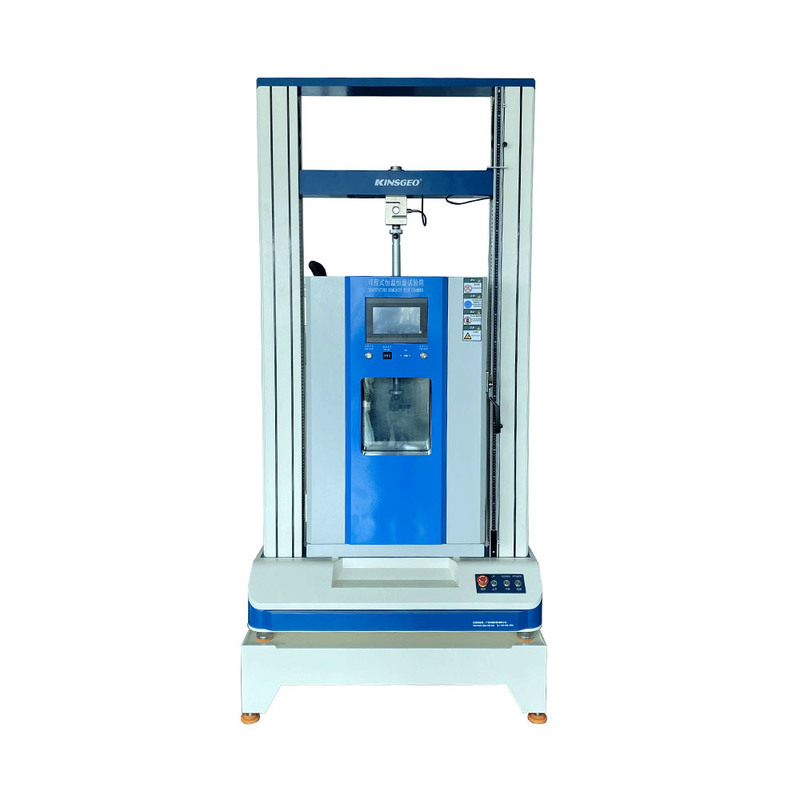

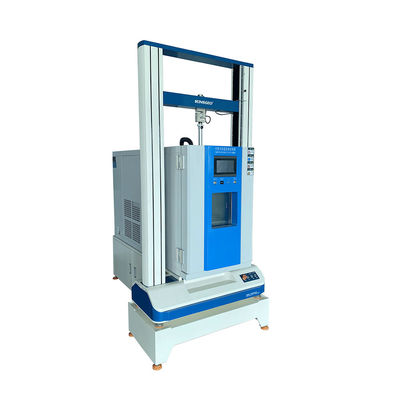

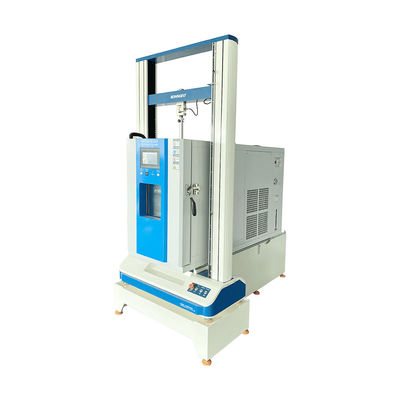

High Precision Constant Temperature And Humidity Universal Testing Machine

Large Image : High Precision Constant Temperature And Humidity Universal Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1067

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/8800/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Capacity:	Capacity	Model:	KJ-1067
Operation Method:	Windows Operation	Resolution:	1/2500,000
Accuracy:	≤0.5%	Testing Speed:	0.5~1000mm/min
Stroke:	400、500、600mm(Height Can Be Customized)	Test Width:	40cm(can Be Changed By Customer Needs)
Test Space:	（L×W×H）40×40×70cm	Motor:	Panasonic Servo Motor
Clamp:	Customize By Customer Needs(tensile And Compressive Clamp)	Temperature Range:	-50℃～150℃
Humidity Range:	20%RH~98%RH	20%RH~98%RH:	±2.5%RH，±1℃
Accuracy Of Distribution:	±3%RH，±1℃

High-Low Temperature Tester With Tensile Peel Strength Tester With Environment Simulation Camber

This machine combines high-low temperature tester with tensile peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process.Setting up different fixtures can test 180&90 degree peeling strength, separating force,etc. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.

Character

The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.
Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controlled in 2%.
That Using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Have steady performance, high accuracy, powerful software function and easy operation.
Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.

Accessories

Suitable Grips that meet customer sample need.
Special peeling tools for peel test in tape&film industry.
Software for test control,data acquisition and report.
English operation teach video.

High-Low Temperature Tester Specifications

Capacity	10kg
Model	KJ-1067
Unit	g,kg,N,KN,LB
Operation method	windows operation
resolution	1/2500,000
Accuracy	≤0.5%
Testing speed	0.5~1000mm/min
Stroke	400,500,600mm
Test width	40cm
Test space	(L×W×H)40×40×70cm
Motor	Panasonic servo motor
Kind of drive	high-precision ball screw
Weight	200kg
Power	1φ,220V/50Hz
Rate of work	0.4KW(depend on motor model)
Clamp	customize by customer needs(tensile and compressive clamp)

Temperature and Humidity Chamber Specifications

Temperature range	-50℃～150℃
Temperature method	computer P.I.D.automatic control
Humidity range	20%RH~98%RH
Stability of control	±2.5%RH,±1℃
Accuracy of distribution	±3%RH,±1℃
Temperature&humidity control	Korea TEMI880
Circulatory System	Wind forced circulation
Heating System	SUS#304, stainless steel heater
Humidifying System	Surface evaporation, a transparent structure.
Cooling system	Fan cooling mode, high efficiency of all sealed compressor
Dehumidifying System	Freezing latent heat dehumidification mode

High Precision Constant Temperature And Humidity Universal Testing Machine 0

High Precision Constant Temperature And Humidity Universal Testing Machine 1
