Customized 5 Units Laboratory Universal Testing Machine with AC220V 50Hz Power and ±0.5% Accuracy

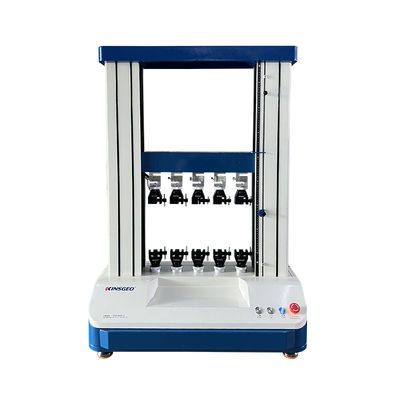

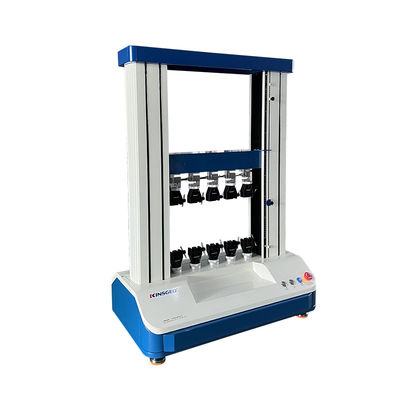

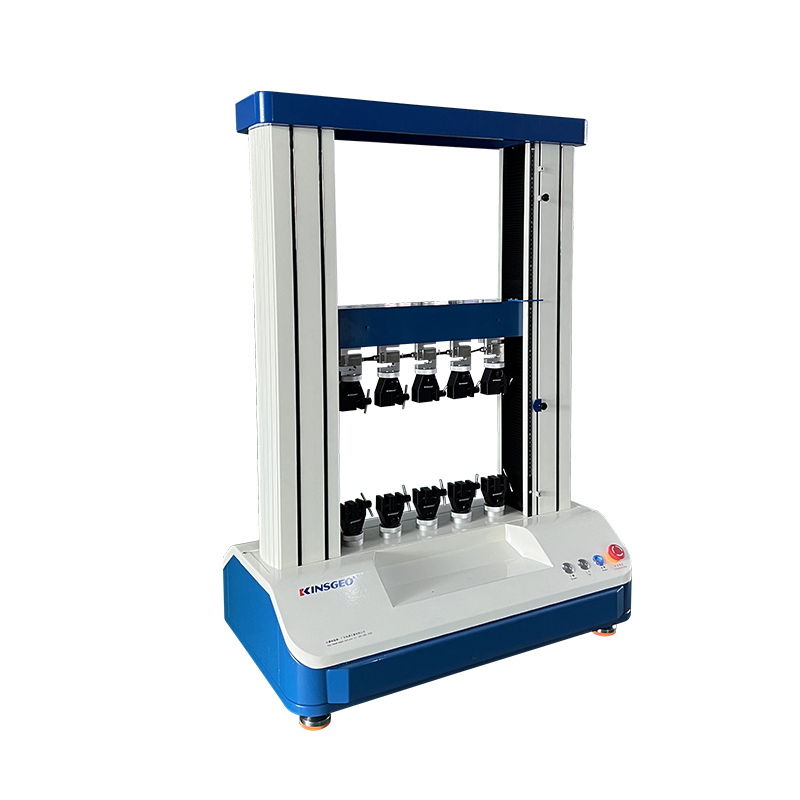

Large Image : Customized 5 Units Laboratory Universal Testing Machine with AC220V 50Hz Power and ±0.5% Accuracy

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1066

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/4800/SET
Delivery Time:	15 work days
Payment Terms:	T/T,D/P
Supply Ability:	60Sets/month

Contact Now

Detailed Product Description

Power:	Electronic,Hydraulic,AC220V 50Hz	Usage:	Universal Testing Machine
Weight:	216Kg	Product Name:	10T Computer Servo Universal Tensile Testing Machine Price
Power Supply:	Can Be Customized,220V 50Hz	Application:	Universal Tester
Standard:	BS.EN.ASTM	Motor:	Panasonic Servo Motor
Warranty:	1 Year	Accuracy:	+/-0.5%
Name:	Universal Testing Machine	Capacity:	200
Stroke:	650mm(excluding Clamp)	Resolution:	1/250
Test Space:	120mmMAX	Measuring Accuracy:	The Value ±1%/ The Value±0.5%
Effective Measuring Range:	0.2%~100%(1 Grade)/0.4%~100%(0.5 Grade)	Operation:	Computer Windows Operation
Highlight:	AC220V 50Hz Universal Testing Machine , 1 Year Warranty Materials Testing Machine , ±0.5% Accuracy Tensile Testing Machine

Customized 5 Units Laboratory Universal Testing Machine

Applications

This machine, also known as a materials testing machine, is designed for testing tensile strength, compression, bending, peel resistance, shearing force, peeling force, modulus of elasticity, and elongation of various materials. Suitable for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, packaging, tape, film, solar cells, and other materials.

Key Features

Constructed with paint-coated aluminum blanking plate for durability
High-accuracy, low-resistance ball screw system with zero clearance for improved loading efficiency and structural rigidity
Panasonic servo motor ensures high efficiency, steady transmission, and low noise with speed accuracy controlled within 0.5%
Business computer control with specialized testing software for comprehensive parameter testing, data collection & analysis, result display, and printing output

Technical Specifications

Design Standards	GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D638, ASTM D412
Model	KJ-1066B
Range of Speed	50-500mm/min
Motor	AV Servo Motor
Capacity	2000KG
Resolution	1/150,000
Effective Testing Space	400mm MAX
Accuracy	±0.5%
Operation Method	Windows XP/Win7 operation, computer control
Standard Accessories	Computer, printer, system operation manual
Optional Accessories	Customized clamps, force sensors, printer, operation manual
Weight	400KG
Dimensions (WDH)	8050150cm
Power	1PH, AC220V, 50/60Hz
Safety Features	Upper and lower stroke protection, force protection system, emergency stop device
