Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic,AC 220 V | Usage: | Universal Testing Machine,Tensile Testing Machine |
|---|---|---|---|

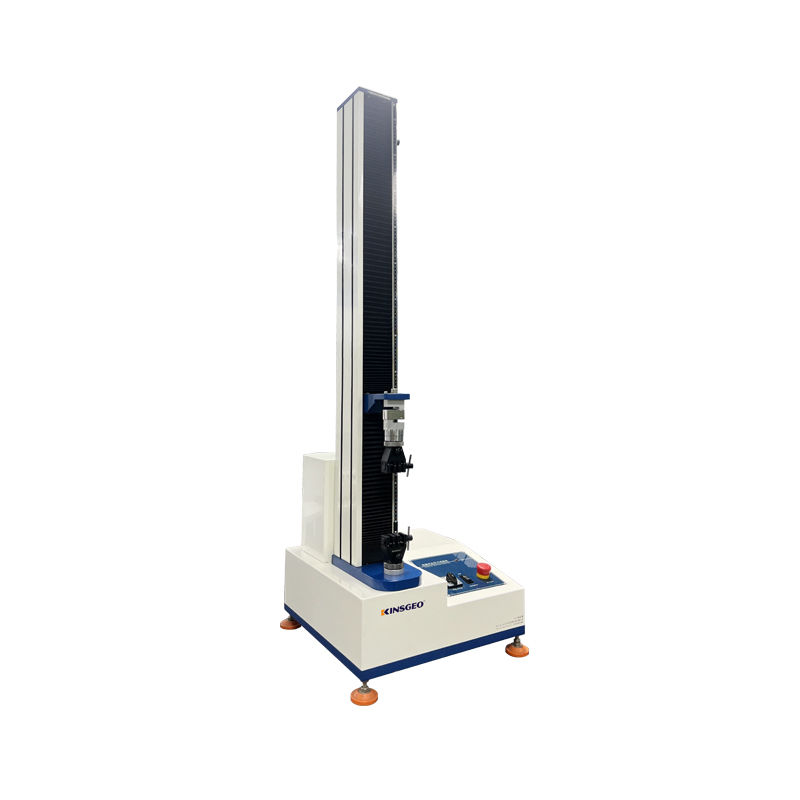

| Weight: | 90kg | Product Name: | Computer Control Single Column Universal Testing Machine |
| Power Supply: | Can Be Customized | Application: | Universal Tester |
| Standard: | BS.EN.ASTM | Motor: | Panasonic Servo Motor |
| Warranty: | 1 Year | Accuracy: | +/-0.5% |
| Name: | Universal Leather Tensile Strength Test Machine | Capacity: | 20 |
| Stroke: | 850 Mm (contain Clamps) | Resolution: | 1/250 |
| Test Space: | 120mmMAX | Operation: | Computer Windows Operation |
Character
1. That Using the computer as the main control mathine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady speed, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.
Software functions
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
Specification
| Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,GB/T 453,ASTM E4,ASTM D1876,ASTM F2256,EN1719,EN 1939,ISO 11339,ISO 36,EN 1465,ISO 13007,ISO 4587,ASTM C663,ASTM D1335,ASTM D5733, ASTM D2261,ASTM F2458,EN 1465,ISO 2411,ISO 4587,ISO/TS 11405,ASTM D5034, ASTM D4632 |
| Model | KJ-1069 |
| Range of speed | 0.5~5000mm/min |
| Motor | Japan Panasonic Servo Motor |
| Stroke | 1200mm(Include grips) |
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional |
| Resolution | 1/250,000 |
| Effective testing spac | 120mmMAX |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Accessories | two pair grips,software |
| Weight | 80KG |
| Dimention | (W×D×H)58×58×125cm |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
