Accurate 5 KN to 2500 KN Tensile Tester with Panasonic Servo Motor and ±0.5% Accuracy Universal Testing Machine

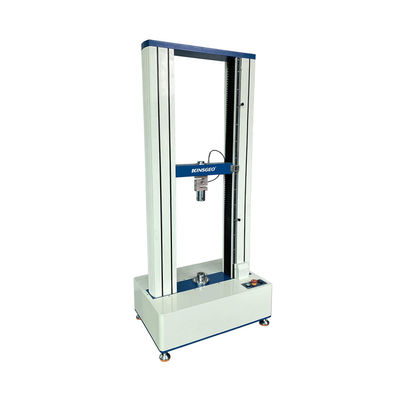

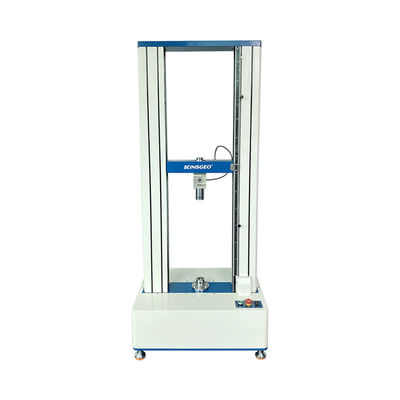

Large Image : Accurate 5 KN to 2500 KN Tensile Tester with Panasonic Servo Motor and ±0.5% Accuracy Universal Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/5100/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Highlight:

Accurate Tensile Strength Measurement Testers

5 KN Tensile Testers

Accurate Tensile Strength Measurement 5 KN To 2,500 KN Tensile Testers

A tensile tester, also known as a pull tester or universal testing machine (UTM), is an electromechanical test system that applies tensile (pull) force to materials to determine tensile strength and deformation behavior until break. These machines consist of a load cell, crosshead, extensometer, specimen grips, electronics, and drive system, controlled by specialized software that defines machine settings and stores test parameters according to standards such as ASTM and ISO.

Applications

This materials testing machine performs tensile, compression, bending, peel, shearing force, peeling force, modulus of elasticity, and elongation testing for various materials including metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, packaging, tape, film, solar cells, and more.

Key Features

Paint-coated aluminum blanking plate construction with high-accuracy, low-resistance ball screws and oriented poles for improved loading efficiency and structural rigidity
Panasonic servo motor ensures high efficiency, steady transmission, and low noise with speed accuracy controlled within 0.5%
Business computer main control with specialized testing software for parameter configuration, data collection, analysis, result display, and printing

Standard Accessories

Suitable grips tailored to customer sample requirements
Software for test control, data acquisition, and reporting
English operation tutorial video
Table computer selection
Extensometer as requested by customer

Software Capabilities

Windows operating platform with dialog form parameter setting
Single-screen operation interface
Simplified Chinese, Traditional Chinese, and English language support
Free test sheet mode planning
Real-time test data display
Multiple curve data comparison capabilities
Multiple measurement units with metric and imperial system switching
Automatic calibration function
User-defined test method functionality
Test data arithmetic analysis
Automatic magnification for optimal graphic sizing

Technical Specifications

Design Standards	GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D638, ASTM D412
Model	KJ-1066B
Speed Range	50-500mm/min
Motor	AV Servo Motor
Capacity	2000KG
Resolution	1/150,000
Testing Space	400mm MAX
Accuracy	±0.5%
Operation Method	Windows XP, Win7 operation, computer control
Standard Accessories	Computer, printer, system operation manual
Optional Accessories	Customized clamps, force sensors, printer, operation manual
Weight	400KG
Dimensions	80×50×150cm (W×D×H)
Power Requirements	1PH, AC220V, 50/60Hz
Stroke Protection	Upper and lower protection, prevents over preset
Force Protection	System setting
Emergency Stop	Handling emergencies
