Mini Lab Use Tape Coating Machine 300mm Coater Vacuum Adsorption

I. product description

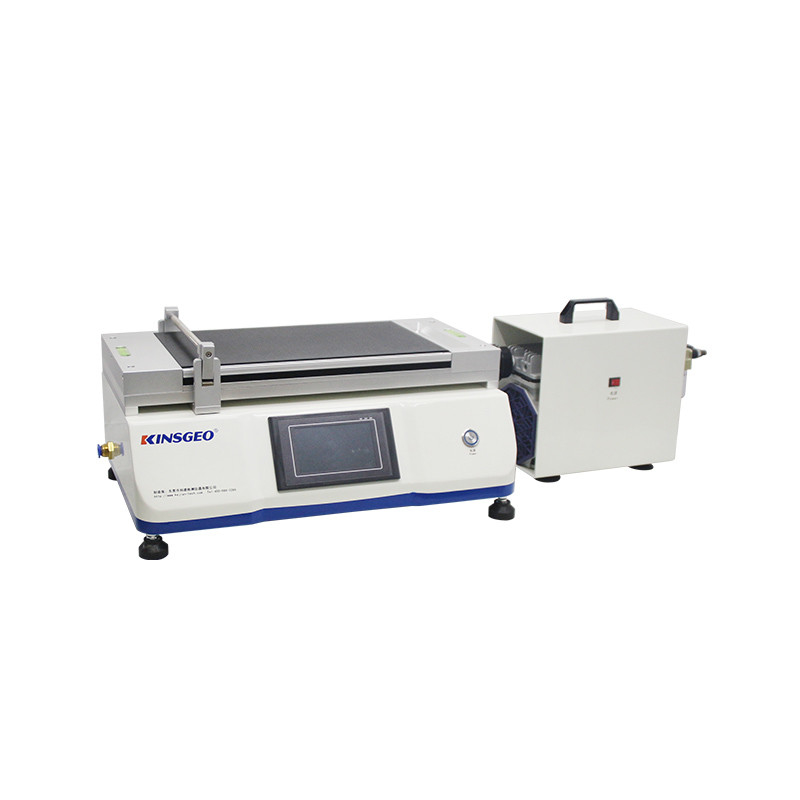

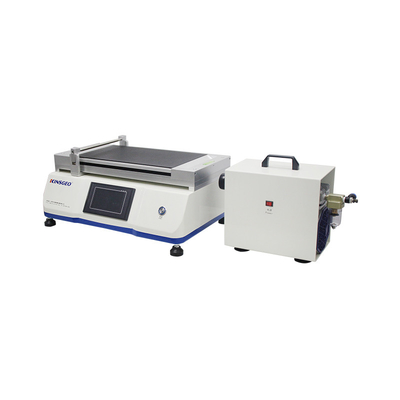

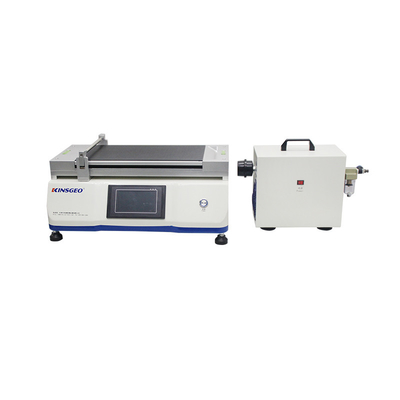

KJ-6017B vacuum adsorption coating machine is used to prepare uniform and tractable coating film (manual coating film is often inconsistent, especially between different operators, which makes the comparison of samples difficult or even unreliable), and its reproducibility is good.Because the factors affecting the coating are shear rate and weight applied to the construction tool.The instrument USES a precisely controlled wire rod or film applicator to move back and forth at a selected speed.The reproducibility of the coating is greatly improved by the fact that the test paper is evenly adsorbed on the suction cup and the shear rate and weight applied to the construction tool remain unchanged.

2. Product features

It is an automatic coating machine which integrates the most advanced technology of the same kind of foreign products. Compared with other domestic products, it has the following characteristics:

1.wide range of stepless speed regulation: 10~999mm/min

2.high precision linear guide bar + brushless dc motor, make the coating speed more stable

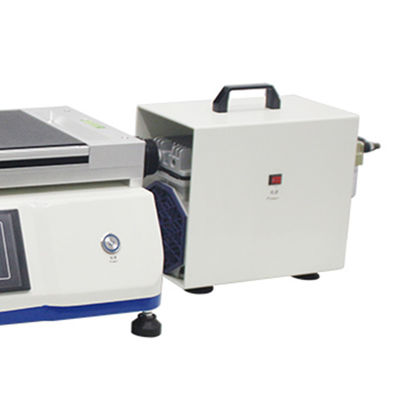

3.vacuum pump external, avoid the traditional machine (vacuum pump built-in) structure in the coating jitter.

4.The well-designed coating bracket is easy to operate and can be arbitrarily increased to adapt to the flexible

test board

high hardness, high flatness (the whole platform error is less than 5 micron) aluminum oxide vacuum suction platform

1.optimized design of vacuum suction platform, highly uniform adsorption force distribution

2.arbitrarily set the starting point of coating, adapt to different sizes of substrate.

3.four kinds of coating distance arbitrary selection

Optional wire rod, adjustable scraper and other coating systems (240mm in total length)

3. Product Specifications
