Laboratory Hot Melt Coating Machine 20 Microns Coating Thickness

Continuous Hot Melt Adhesive Printing Coating Testing Machines

Usage

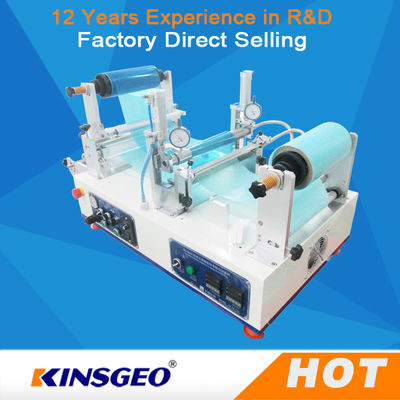

KJ-6018  continuous hot melt adhesive coating and laminating machine is a laboratory mini-type hot melt adhesive coating and laminating machine which can be manufactured in small quantities and assembled by the mechanism of high precision modular coating station.Hot melt pressure sensitive adhesive can be directly coated on heat resistant substrate, or coated on the release paper and then the adhesive film to paste on different surface materials, such as paper, plastic model metal film, etc. (the best experimental substrate recommended to use 50 micron high temperature PET film).

Performance characteristics

· High precision modular coating station structure assembly.

· The maximum operating temperature is 200℃

· Independent pt-100 high-precision PID temperature control mode for the upper rubber wheel and rubber groove

· Use the micrometer as the dividing head to precisely adjust the coating gap between the upper and lower rubber wheels to control the coating thickness.The maximum coating gap is 500 microns (substrate thickness), and the optimum coating thickness is ≥20 microns (coating accuracy is ±5 microns).After the thickness setting, the rubber wheel can be indirectly locked to prevent the gap from changing.

· The maximum width of the coil is 200mm (the maximum width of the sheet is 260mm) and the maximum coating width is 160mm.The coating width is adjusted by two Teflon baffles in the glue tank.Unlimited length of adhesive coating, automatic winding.

· CVT, maximum coating speed: 4.5m/min (optimal coating speed is 1-2m/min)

· Release reel can adjust knob to change tension release.

· The material receiving reel can adjust the mechanical tension control.

· Heating rod, rubber wheel and rubber groove can be quickly removed from the body to remove residual glue.

· Machine size: 1150 * 518 (including 720 motors) * 658 mm (length * width * height)

· Machine weight: about 120 kg

· Power supply: AC 220v (single-phase)/50Hz

· Machine power: 1050w
