Label Adhesive Peeling Strength Testing Machine High Accuracy

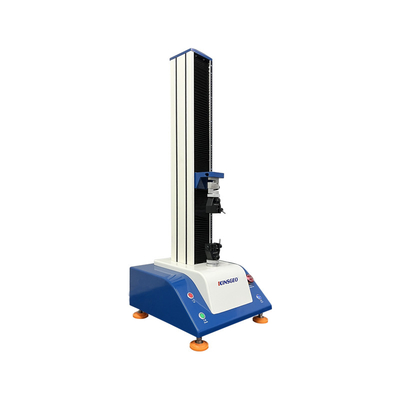

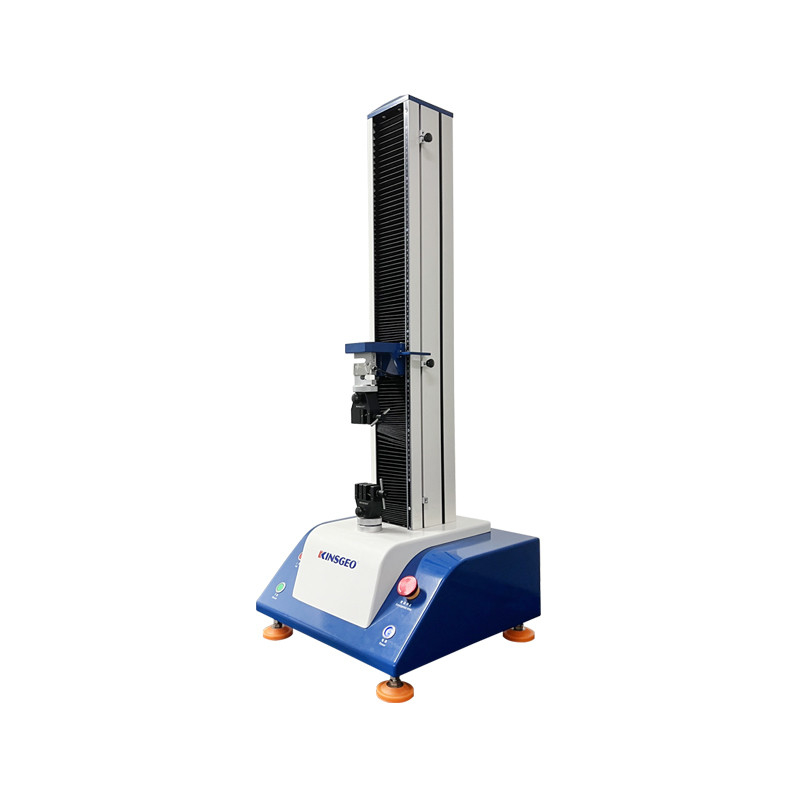

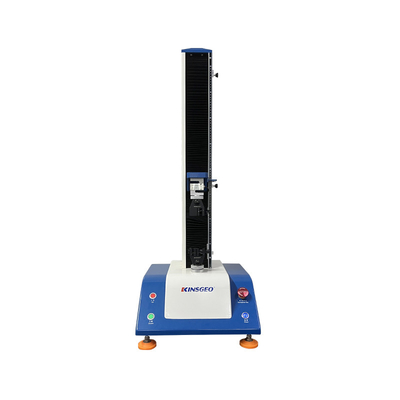

Large Image : Label Adhesive Peeling Strength Testing Machine High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	KINSGEO
Certification:	CE/ISO
Model Number:	KJ-1065A-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD/4600/SET
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	30Sets/month

Contact Now

Detailed Product Description

Power:	Electronic,220V/50HZ	Usage:	Tape Peeling Strength Tester
Product Name:	Tape Peeling Tester/Adhesive Peeling Test Equipment,180 Degree Adhesive Peel Test Equipment	Warranty:	1 Year
Application:	Adhesive Tape Tester	Standard:	CNS.4158,SATRA PM123
Measuring Range:	5kg	Load:	0~100kg
Weight:	About 145 Kg	Capacity:	20
Power Supply:	AC220V 10% 50HZ	Dimention:	6503301730mm
Function:	Adhesive Tape Test Machine	Accuracy:	±0.5%
Accuracy Class:	0.5 Class	Speed Of Test:	0.01-500mm/min
High Light:	Label Adhesive Peeling Strength Testing Machine , High Accuracy Strength Testing Machine

Label, Adhesive Peeling Strength Testing Machine

Uses:

This machine is designed for quick and reliable tensile, compression, bending, shear, peel,

loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films,

elastomers, textiles, paper, board and finished products.

Design standard:

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Character:

1 That Using the computer as the main control mathine plus the special testing software of our

campany can conduct all of testing parameter, work state, collecting data&analysis, result

display and printing output.

2 Have steady performace, high accuracy, powerful software function and easy operation.

3 Use the USA high-precision load cell

Specifications:

Capacity choice	1,2,5,10 kg
Stroke	650mm(excluding clamp)
Range of speed	0.01~500mm/min
Effective testing space	1200mmMAX
Accuracy	±0.5%
Operation method	Windows operation
Motor	AC motor
Accessories	printer, system operation manual,pair of clamp
Optional accessories	stretcher, clamp
Resolution	1/500,000
Weight	70kg
Dimention	(W×D×H)58×58×125cm
Power	AC220V, 50/60Hz
