Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture

China Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture supplier
Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture supplier Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture supplier Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture supplier Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture supplier Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture supplier

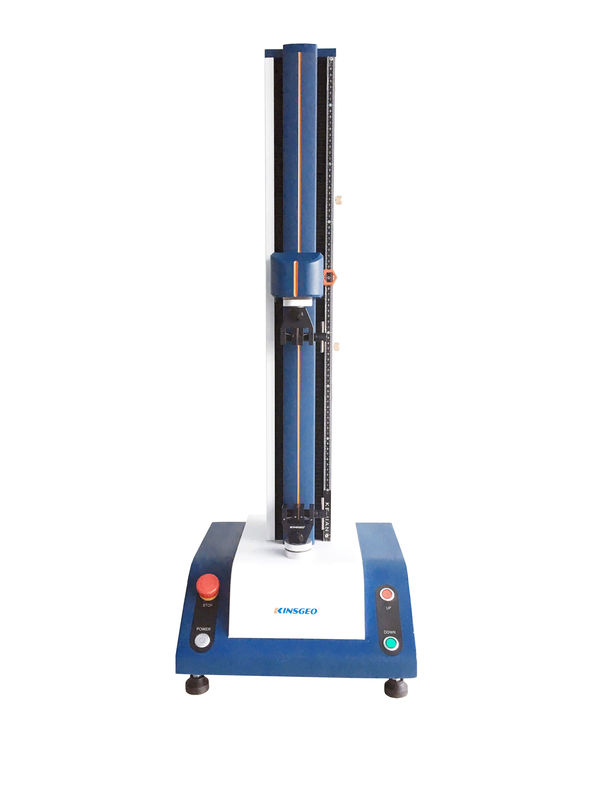

Large Image :  Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture

Product Details:

Place of Origin: Dongguan China
Brand Name: KeJian
Certification: ISO,CE and etc
Model Number: KJ-1065A-H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Export Strong wooden case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: Plastic Peel Adhesion Test Equipment Warranty: 12 Months
Application: Adhensive Tape,Paper Products Color: Blue
Standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 Weight: 70kg
Range Of Speed: 50~500mm/min Accuracy: ±0.5%
Resolution: 1/150,000 Power Supply: 1PH, AC220V, 50/60Hz

Computer Control 500N Plastic Peel Adhesion Test Equipment With A Pair Of Fixture



Design standard:

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7



Uses:

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.



Character:

1 That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

2 Have steady performace, high accuracy, powerful software function and easy operation.

3 Use the USA high-precision load cell.



Specifications:

Capacity choice 10kg
Stroke 650mm(excluding clamp)
Range of speed 0.01~500mm/min
Effective testing space 120mmMAX
Accuracy ±0.5%
Operation method Windows operation
Motor AC motor
Accessories computer, printer, system operation manual,a pari of fixture
Optional accessories stretcher, air clamp
Resolution 1/150,000
Weight 70kg
Dimention (W×D×H)58×58×125cm
Power 1PH, AC220V, 50/60Hz



Safety Device:

Stroke protection:Upper and lower protection, prevent over preset

Force protection:system setting

Emergency stop device:Handling emergencies.



Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
