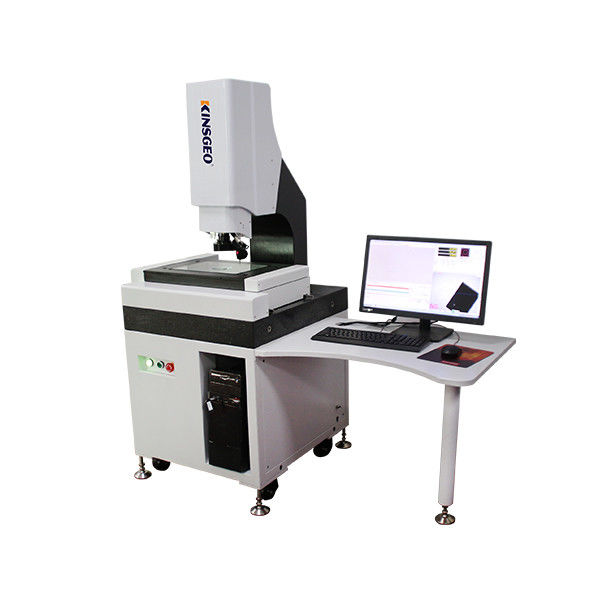

3um CNC VMS Cmm Coordinate Measuring Machines Non Contact

3um CNC VMS Cmm Coordinate Measuring Machines Non Contact
3um CNC VMS Cmm Coordinate Measuring Machines Non Contact

Large Image :  3um CNC VMS Cmm Coordinate Measuring Machines Non Contact

Product Details:
Place of Origin: China
Brand Name: Kejian
Model Number: KJ-CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 5000/Set
Packaging Details: wooden
Delivery Time: 5 work days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Set/Week
Contact Now
Detailed Product Description
Feature 1: High Precision Non Contact Feature 2: Quick Vision
Feature 3: Non Contact Keyword: Coordinate Measuring Machines
High Light:

3um Coordinate Measuring Machines

,

CNC VMS Coordinate Measuring Machines

,

CNC VMS cmm measuring machine

High Precision Quick Vision Non Contact CNC VMS Vision Measuring Machine

OVERVIEW

CNC vision measurement machine is a powerful dimension measuring device designed for mass production quality control process. It is configured with powerful software which makes the measuring process programmable, users can achieve big quantity products measuring by full automatic process. PEAK series is an economical model of full automatic CNC vision developped by UNIMETRO. The simple and integrated design allow us to build the machine with lower cost, in the mean time keep the high measuring accuracy and best performance. Users are able to enjoy the advantage of high efficiency and labor cost saving from a full CNC vision measurement machine with very low price.





FEATURES
1.
The PEAK series with multiple automatic measuring function, and take the economy into account.
2.
With reasonable & advanced design concept, the fuselage is more compact and fashionable.
3.
Customized to meet the needs of different markets: compared with the standard configuration production of other brands, UNIMETRO machine configuration is more flexible and changeable.
4.
PEAK series with higher accuracy and more stable repeatability.
5.
Hardware: Powerful optical and imaging system support
6.
Software: Powerful software function support behind.(UNIMETRO/INSPECT/RationalVue etc. mature software to option )



◉ 3 axis 0.5um resolution linear scales ◉ High performance Auto focus function ◉ Aluminum work stage and hard anodizing
◉ Compatible with Renishaw touch probe(optional) ◉ 3 rings 8 section LED ring light software control and programmable ◉ Parallel light path LED contour light software control and programmable ◉ Confocal Fiber Displacement Sensor(optional)


Model
PEAK300
PEAK400

Dimension(mm)(L*W*H)
810*610*1055
960*710*1080

Measuring Range(mm)(X*Y*Z)
300*200*200
400*300*200

Accuracy(um)
3+L/200
3+L/200

Repeatability(um)
3
3

Camera
Industrial grade analog CCD camera and SV2000E video card
Lens
Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional)
Magnification
18-195X (Different combination of camera and lens leads to different magnification range
FOV
8.1-1.3mm (Different combination of camera and lens leads to different FOV range)
Working Distance
90mm
Linear scales resolution
0.0005mm
Illumination
Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light
◉ HIWIN linear guide way
◉ Z axis motorized control
◉ Integrated core control box
◉ Industrial grade CCD camera
◉ Manual pulsegenerator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing (optional)
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor
