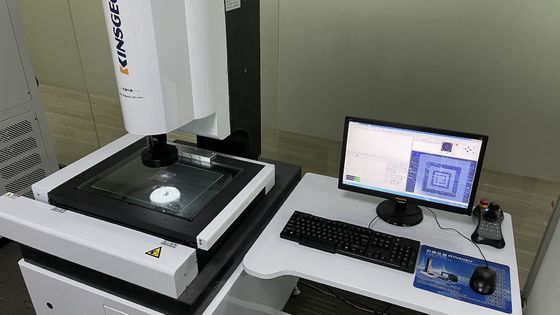

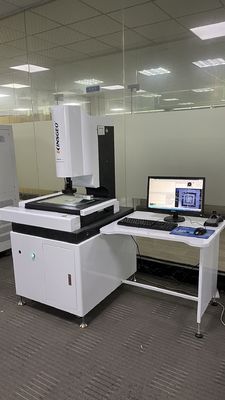

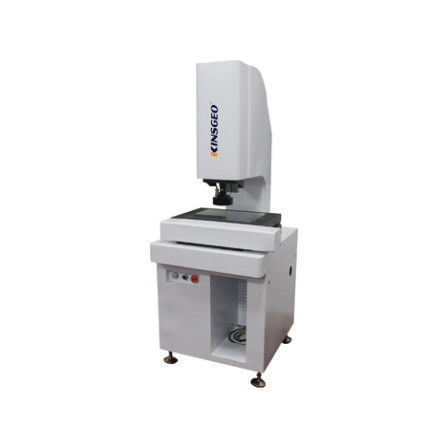

VMC Vision Testing Equipment , 15kg Video Measuring System

VMC Vision Testing Equipment , 15kg Video Measuring System
VMC Vision Testing Equipment , 15kg Video Measuring System

Large Image :  VMC Vision Testing Equipment , 15kg Video Measuring System

Product Details:
Place of Origin: CHINA
Brand Name: KINSGEO
Certification: ISO, CE
Model Number: KJ-VMC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden cases
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Set per Months
Detailed Product Description
Product Name: Image Instrument Optical Machine Test Distance: 300x200x200
X Y Axis Accuracy: ≤3+L/200 Z-axis Accuracy: ≤3+L/100
Resolution: 0.1μm Composite Multiple: 20~128X
Power Supply: 220V Warranty: 12 Months
High Light:

VMC Vision Testing Equipment

,

15kg Vision Testing Equipment

,

VMC Video Measuring System

Image Instrument Optical Machine Vision Testing Equipment Video Measuring System Equipment​



Instructions

VMC is a fully automatic image measuring instrument developed for product measurement applications. It adopts flexible manual variable times, optimized hardware and software configuration, and perfectly realizes the full automatic measurement requirements of various 2D sizes in batches, widely used in mold, precision hardware, mobile phone panels, glass, touch screen and other industries.



Specification



  VMC3020D VMC4030D VMC5040D

Test distance(mm)

X Y Z

300x200x200 400x300x200 500x400x200
Weight(kg) 250 350 500
Load capacity 15kg



X Y axis accuracy(μm)

≤3+L/200(L is the unit of measure mm)
Z-axis accuracy (μm) ≤3+L/100(L is the unit of measure mm)
Working Distance 82mm
Resolution 0.1μm
Objective magnification 0.7X-4.5X
Composite Multiple 20~128X
Control System CNC CLOSED-LOOP CONTROL system
Lighting System Surface light source and transmission light source are LED, brightness adjustable

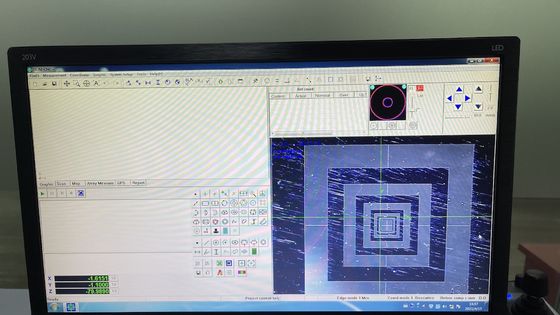

Computer Windows 7



VMC Vision Testing Equipment , 15kg Video Measuring System 0



FAQ

1. Q: What is your warranty ?
- 12 months product warranty, but lifetime for services.Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.

Tensile Testing Machine

2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.

Tensile Testing Machine

3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory+ trade (integration),18 years focusing on test instruments field,9 years exporting experience.,warmly welcome to visit our plant(factory), we also support OEM and ODM.

Tensile Testing Machine

4. Q: After an order is placed, when to deliver?
- Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

5. Q: What about the warranty with after - sales services?
- 12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory.
What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.

Tensile Testing Machine

6. Q: What about the services and product' quality?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Engineers would be go abroad to training, repair and others help you need.


VMC Vision Testing Equipment , 15kg Video Measuring System 1
