800L Programmable Salt Spray Test Chamber For Alkaline Corrosive Test

China 800L Programmable Salt Spray Test Chamber For Alkaline Corrosive Test supplier
800L Programmable Salt Spray Test Chamber For Alkaline Corrosive Test supplier 800L Programmable Salt Spray Test Chamber For Alkaline Corrosive Test supplier

Large Image :  800L Programmable Salt Spray Test Chamber For Alkaline Corrosive Test

Product Details:

Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-2070

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: 15-30 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Aplication: Salt Spray Machine Warranty: 12 Months
Usage Strength: Test Chamber Power: 1φ、220V/50HZ
Spray Capacity: 1~10cc/h Structure Material: F.R.P
Standard: ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371 Internal Size: 90×60×50cm



Large Capacity 800L Programmable Salt Spray Test Chamber For Alkaline Corrosive Test







Application:

This machine for all kinds of metal material surface treatment, including coating, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.

Specification :

Model KJ-60AKJ KJ-90A KJ-120A
Inner box size:
(L×W×H) cm
60×40×45 90×60×50 120×100×50
Outside box size:
(L×W×H)cm
107×60×118 141×88×128 190×130×140
Equipment material: Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C.
Temperature range: 35°C~55°C
Temperature fluctuations: ≤±0.5°C
Temperature uniformity: ≤±2°C
Temperature precision: ±1°C
Test chamber temperature NSS ACSS 35±1°C CASS:50±1°C
Saturated air barrel temperature: NSS ACSS 47±1°C CASS 63±1°C
Brine temperature: 35°C±1°C
Spray quantity: 1.0~2.0 ml / 80cm2 /hr
PH: NSS ACSS6.5~7.2 CASS 3.0~3.2
Lab volume: 108L 270L 600L
Brine tank capacity: 15L 25L 40L
Power: 1AC220V,10A 1AC220V,15A AC 1,220V,30A
Multiple safety protection devices: Water shortage/ over temperature / phase protection
Standard accessories: Test salt, measure bucket, tool etc 1 set



Customize parts for Corrosion Test Chamber:

1. Inner chamber size

2. Inner chamber structure

3. PID programmable controller or PLC touch screen controller



Features :

1 Durable hard PVC construction, anti-corrosion, easy to clean.

2 Reservoirs with mixing system on stand.

3 Cabinet heated by water jacket, heating element from USA famous company.

4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.

5 Exposure zone lined with corrosion-resistant PVC sheets.

6 Clear cover allows viewing of test conditions.

7 Peaked cover prevents dripping of condensation onto samples.

8 Water seal and water level protection system.

9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.

10 Automatic DI water fill to humidifying tower.

11 Digital temperature control and readouts.

12 Integral over-protection on all heaters.

13 Low water cut-off protection on humidifying tower.



Product details:

salt fog chamber corrosion tester equipment salt spray test machine / used salt spray test chamber price

Pictures:

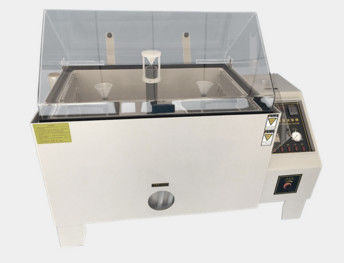

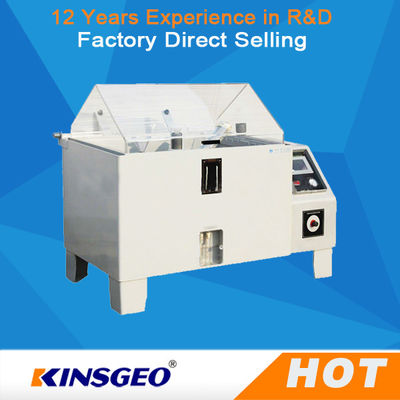

800L Programmable Salt Spray Test Chamber For Alkaline Corrosive Test
