High Temperature Lab Coating Machine Easy Install 1200×620×550mm

High Temperature Lab Coating Machine Easy Install 1200×620×550mm

High Temperature Lab Coating Machine Easy Install 1200×620×550mm

Product Details:

Place of Origin: Dongguan China
Brand Name: KEJIAN
Certification: ISO,CE and etc
Model Number: KJ-6018

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong plywood cases
Delivery Time: 10-20working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 sets per month
Detailed Product Description
Uses: Hot Melt Industry For Lab Warranty: 12 Months
Display: Digital Control The Maximum Coating Width: 280mm
Dimension: 1200×620×550mm Weight: 120kg
Power Source: 1 Phase, AC 220V Rate Of Power: 1050W


High Temperature Lab Coating Machine / Humidity Lab Test Machine


Uses:

The precision laboratory benchtop Hot Melt Coater is capable of producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied.

Characteristic:

1. Self contained brake unwinds for adhesive carrier and facestock
2. Requires a 110V/20A circuit and compressed air source
3. Pivot control on adhesive carrier and facestock to control web alignment
4. Laminating speed and pressure are controllable
5. Maximum operating temperature 482℉(250℃)
6. Clean up is easily accomplished through quick, uncomplicated disassembly
7. Generates sample laminates as long as needed
8. Precision ground coating bars
9. Both coating bars and the back reservoir are heated independently
10. Width of coating can be controlled by teflon insert side dams
11. Durable aluminum and steel construction means a long machine life with consistent performance
12. Variable speed controller can be adjusted
13. Non rotating bars is separated from the reservoir, with PT-100 high-precision PID temperature control mode
14. Using a large diameter high precise micrometer to adjust the coating gap to control coating thickness, and show the coating thickness through grating scale. The resolution is 0.05mm, that is the minimum coating thickness is 0.05mm.

15. The maximum coating width is 280mm. Width of coating can be controlled by teflon insert side dams. The precision hot melt coator is capable of producing coated samples, and small production. it can coat for a unlimited length tape, and automatic winding.
16. Reversible speed controller can be adjusted , the best coating speed: 4.5m / min
17. The coated liner bar can be adjusted to control the roll tension
18. The heating bar, the rubber roller and reservoir can be quickly disassembled separated from the host, it is perfect to clean adhesive residue.


Specification:


The maximum coating width280mm
The coating lengthunlimited
Coating speed: adjustable, the best coating speed4.5m/min
Max capacity150g
Minimum coating thickness0.05mm
Dimension1200×620×550mm(L*W*H)
Weightabout 120kg
Power source1 phase, AC 220V
Rate of power1050W



More details:

1. Rugged construction, capable of withstanding the abuse of the production environment
2. Aluminum frame, hard coat anodized and Teflon coated
3. Precision ground, 303 stainless steel coating bars for highly accurate cross web coating
4. Using a large diameter high precise micrometer to adjust the coating gap to control coating thickness
5. Reservoir capacity up to 150 g
6. Reservoir is capable of maintaining temperatures up to 400°F (204°C)
7. Reservoir and coating bar temperatures are accurately maintained by individual digital PID controllers
8. Steel base assembly firmly supports the coating head and unwind stand
9. Adjustable Teflon side dams allow for coating control from 1/2" to 12" in width
10. Safety features include appropriate guarding and an emergency stop switch
11. Stepless Variable speed motor


RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Pictures:

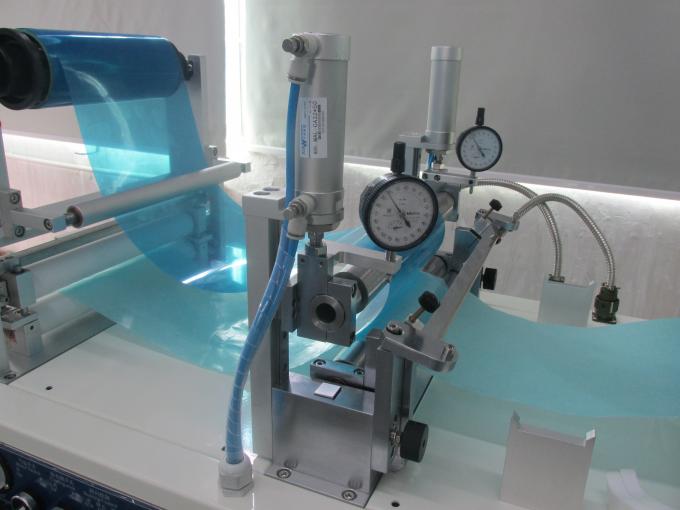

High Temperature Lab Coating Machine Easy Install 1200×620×550mm
