1000mm PC Control Tensile Testing Equipment , Tensile Strength Instrument with USA Sensor

China 1000mm PC Control Tensile Testing Equipment , Tensile Strength Instrument with USA Sensor supplier

Large Image :  1000mm PC Control Tensile Testing Equipment , Tensile Strength Instrument with USA Sensor

Product Details:

Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-1065B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Motor:: Panasonic Servo Motor Control: PC
Test Speed:: 0.1-500mm/min Selectable Accuracy: ±0.5%
Capacity: 5,10,20,25,50,100,200,500kg Optional Sensor: USA Sensor
Pplication: Rubber ,plastic ,nylon ,leather And Etc Design Criteria: ASTM D903,GB/T16491 And Etc
Maximum Trip:: 1000mm Driving Method: High Precise Ball Screw
Grips: Different Material And Test Method With Different Grips

1000mm PC Control Tensile Testing Equipment , Tensile Strength Instrument with USA Sensor





Design standard:



ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,ASTM C633 and etc.





Uses:



Tensile Testing Equipment is designed specially for the adhesive industry. Used to testing peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.





KeJian tensile strength tester Uses:



Tensile Testing Equipment is designed for quick and reliable tensile, compression, bending, shear, peel and fatigue cycling on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.





Character:



1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.

2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.

3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.





Specifications:



Capacity choice 1,2,5,10,20,50,100,200,500kg optional
Stroke

650mm(excluding clamp)



Range of speed 0.5~500mm/min
Effective testing space 120mm
Weight 70kg
Accuracy ±0.5%
Operation method Windows operation
Resolution 1/250,000
Dimention (W×D×H)58×58×125cm
Motor Japan Panasonic servo motor
Accessories computer, printer, system operation manual
Optional accessories stretcher, one pair grips
Power 1PH, AC220V, 50/60Hz





Safety Device:



Stroke protection: upper and low limit protection, prevent over preset

Force protection: system setting

Emergency stop device: Handling emergencies.





Software Functions:



1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

6. With many units of measurement, the metric system and british system can switch;

7. Have automatic calibration function;

8. Have user-defined test method function

9. Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

12. Can test tensile, compression, peel, fatigue and so on.





RFQ:



Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.





Pictures:

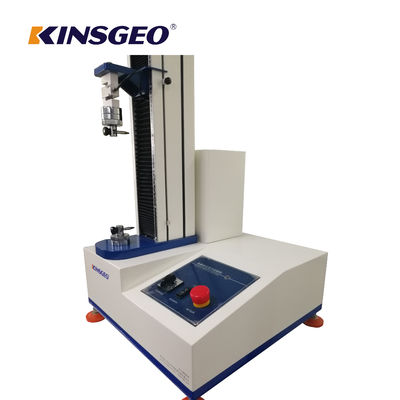

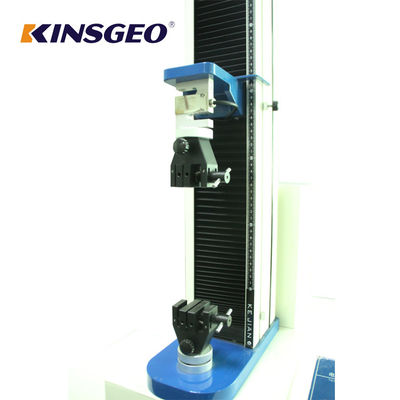

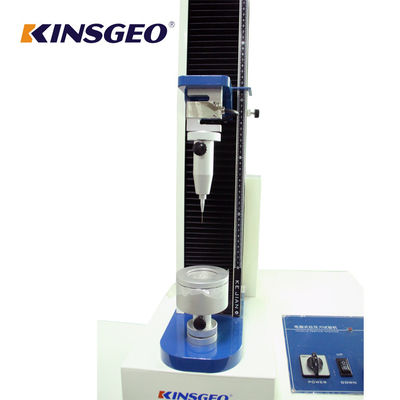

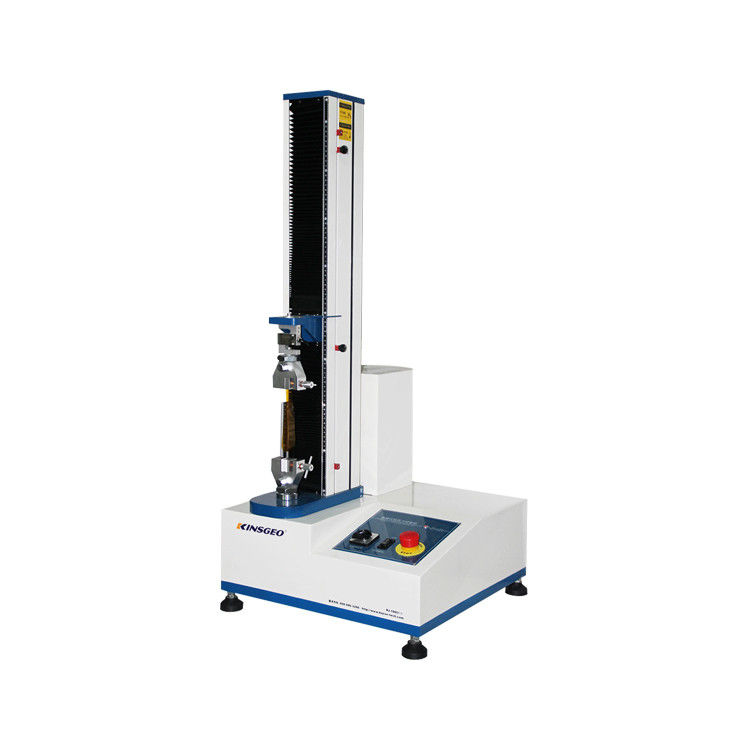

1000mm PC Control Tensile Testing Equipment , Tensile Strength Instrument with USA Sensor
