Product Details:
Payment & Shipping Terms:
|
| Design Standards: | ASTM D903，GB/T2790/2791/2792，CNS11888，JIS-K6854，PSTC7 | Model: | KJ-1065C |
|---|---|---|---|
| Capacity: | 1、2、5、10、20、50、100、200kg Optional | Stroke: | 650mm |
| Range Of Speed: | 50～400mm/min Adjustable,constant Speed， 300mm/min | Test Space: | 120mmMAX |
| Accuracy: | ±0.5% | Resolution: | 1/50,000 |
| Motor: | Adjustable Speed Motor | Display: | Force And Elongation Display |
| Dimention: | (W×D×H)50×50×120cm | Optional Accessories: | Stretcher, Air Clamp |
| Weight: | 60kg | Power: | 1PH, AC220V, 50/60Hz |
| High Light: | Universal Tensile Strength Testing machine,0.5% high-precision Strength Testing machine,free fixture Strength Testing machine |
||

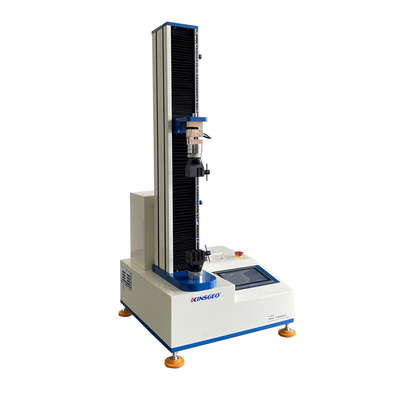

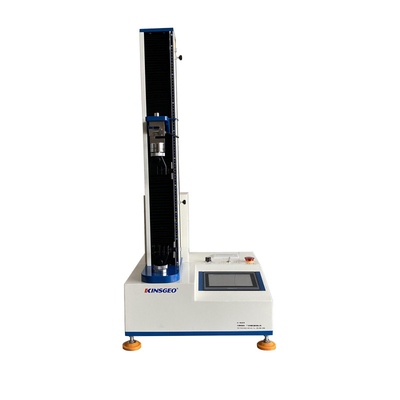

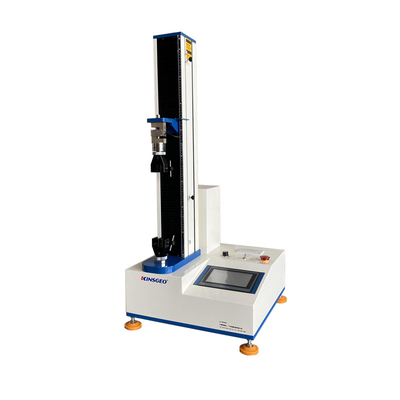

Uses
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character
Have steady performace, high accuracy, and easy operation.
Accessories
1.Suitable Grips that meet customer sample need.
2.Special peeling tools for peel test in tape&film industry.
3.English operation teach video.
Specifications
| Design Standards |
ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7
|
| Model |
KJ-1065C
|
| Capacity | 1,2,5,10,20,50,100,200kg optional |
| Stroke | 650mm |
|
Range of speed |
50～400mm/min adjustable,constant speed, 300mm/min |
| Test space | 120mmMAX |
| Accuracy |
±1.0%
|
| Resolution | 1/50,000 |
| Motor | adjustable speed motor |
| Display | force and elongation display |
| Dimention | (W×D×H)50×50×120cm |
| Optional accessories | stretcher, air clamp |
| 60kg | |
| Power | 1PH, AC220V, 50/60Hz |
