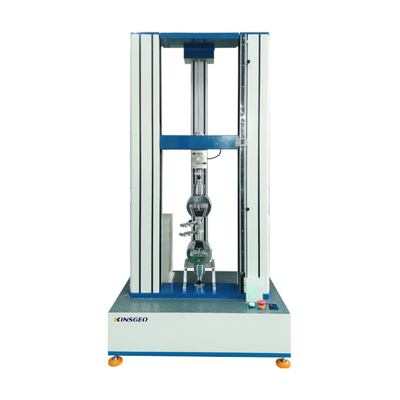

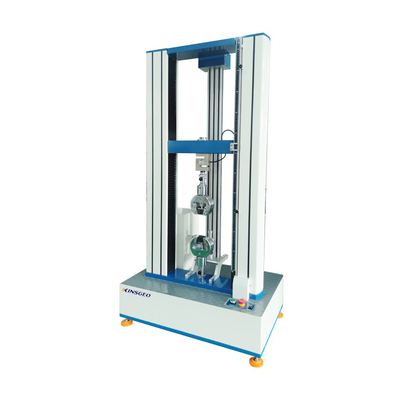

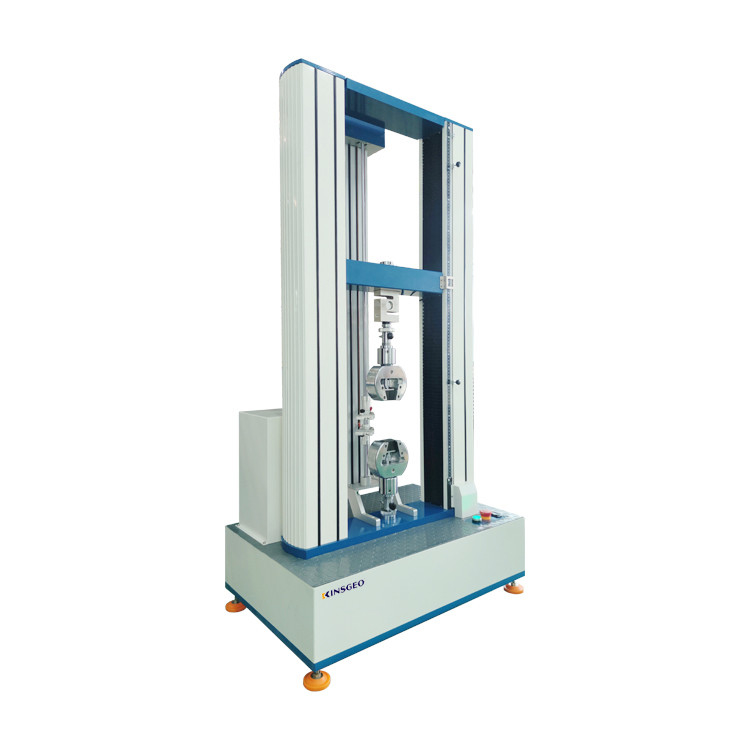

High Efficiency 50kn Electronic Universal Testing Machine For Material Bending Test Equipment

High Efficiency 50kn Electronic Universal Testing Machine For Material Bending Test Equipment
High Efficiency 50kn Electronic Universal Testing Machine For Material Bending Test Equipment High Efficiency 50kn Electronic Universal Testing Machine For Material Bending Test Equipment High Efficiency 50kn Electronic Universal Testing Machine For Material Bending Test Equipment

Large Image :  High Efficiency 50kn Electronic Universal Testing Machine For Material Bending Test Equipment

Product Details:
Place of Origin: China
Brand Name: KINSGEO
Certification: CE/ISO
Model Number: KJ-1066B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD/5700/SET
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30Sets/month
Detailed Product Description
Power: Electronic,AC220V 50Hz Usage: Universal Testing Machine,Tensile Testing Machine
Weight: 1000 Kg Product Name: High Quality 50kn Electronic Universal Tensile Testing Machine
Power Supply: 220V 50Hz Application: Steel,copper,universal Tester
Standard: BS.EN.ASTM,ASTM E8/A370/ISO 75001 Motor: Panasonic Servo Motor
Warranty: 1 Year Accuracy: +/-0.5%
Capacity: 20 Stroke: 650mm(excluding Clamp)
Test Space: 120mmMAX Operation: Computer Windows Operation
High Light:

50kn Electronic Universal Testing Machine

,

Universal Testing Machine High Efficiency

KEJIAN High Quality Bending Test Machine Universal Testing Machine For Material

Uses

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,springs,leather,package,tape,

film,solar cell,ect.

Character

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.

2. Use servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 0.5%.

3. That using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

Accessories

1.Suitable Grips that meet customer sample need.

2.Software for test control,data acquisition and report.

3.English operation teach video.

4.Tabel,computer is selectable.

5.Extensometer as customer need.

Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;



Specification

Design Standards GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ISO 527,ISO 178,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ASTM D628,ASTM D638,ASTM D412
Model KJ-1066A KJ-1066B
Range of speed 0.1-500mm/min 50-500mm/min
Motor Japan Servo Motor Taiwan AC Motor
Capacity choice 10KN,20KN,50KN
Resolution 1/250,000 1/150,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7,Win10 operation,computer control
Optional accessories customized clamps by appointed, force sensors, , printer, and operation manual
Weight 500KG
Dimention (W×D×H)80×50×150cm
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies
Connector RS232 Connector,USB Convertor
