Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic,AC220V 50Hz | Usage: | Universal Testing Machine |
|---|---|---|---|
| Weight: | 90kg | Product Name: | Peeling Strength Tester |
| Power Supply: | 220V 50Hz | Standard: | ASTM E8/A370/ISO 75001 |
| Motor: | Panasonic Servo Motor | Warranty: | 1 Year |
| Accuracy: | +/-0.5% | Capacity: | 20 |
| Stroke: | 650mm(excluding Clamp) | Measuring Accuracy: | The Value ±1%/ The Value±0.5% |
| Operation: | Computer Windows Operation | ||
| High Light: | Pressure Sensitive Tape Peeling Tester,Adhesive Label peel adhesion tester,AC220V Tape Peeling Tester |
||

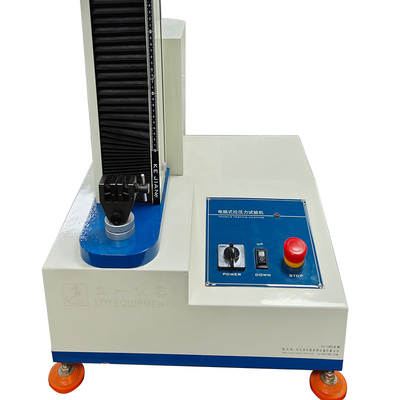

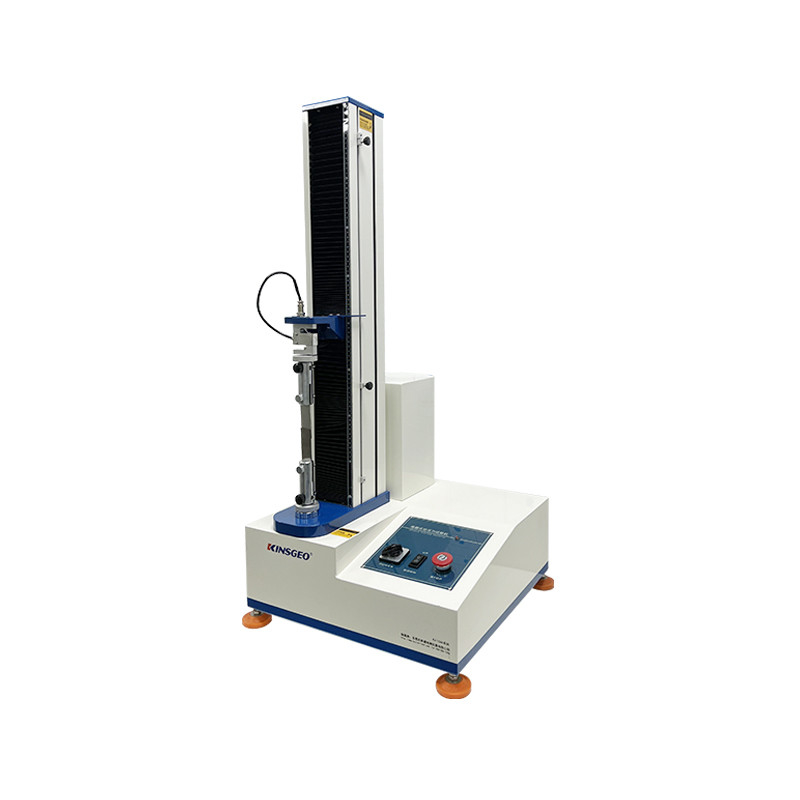

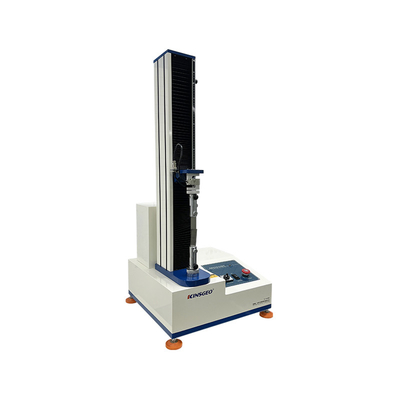

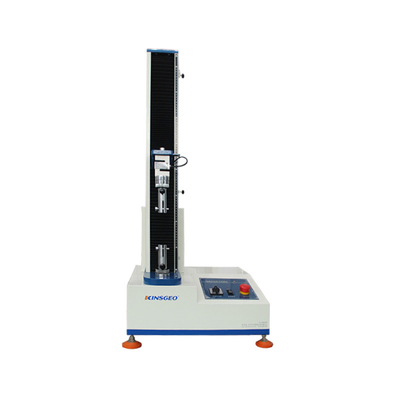

Pressure sensitive adhesive label stripping strength tester tape peeling tester
Design standard:
ASTM D903,ASTM E4,GB/T16491-1996, GB/T2790/2791/2792, EN10002-2,ISO7500, ISO6892, BS4449:1998,CNS11888, JIS K6854, PSTC7, ASTM C633 and etc.
Uses:
KeJian tensile strength tester Uses: This machine is designed for quick and reliable tensile, compression, bending, shear, peel and fatigue cycling on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character:
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controlled in 2%.
3. That Using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Specifications:
| Item | ASTM D3759 Pressure Sensitive Tape Tensile Strength Testing Machine Price |
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional |
| Stroke | 650mm(excluding clamp) |
| Range of speed | A:0.5~500mm/min B:50~500mm/min |
| Effective testing space | 120mm |
| Weight | 80kg |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Resolution | A:1/250,000 B:1/150,000 |
| Dimention | (W×D×H)58×58×125cm |
| Motor | A:Japan servo motor B:AC motor |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, one pair grips |
| Power | 1PH, AC220V, 50/60Hz |
Safety Device:
Stroke protection: upper and low limit protection, prevent over preset
Force protection: system setting
Emergency stop device: Handling emergencies.
