Product Details:
Payment & Shipping Terms:
|
Power: | AC 220 V | Usage: | Universal Testing Machine,Tensile Testing Machine |
---|---|---|---|

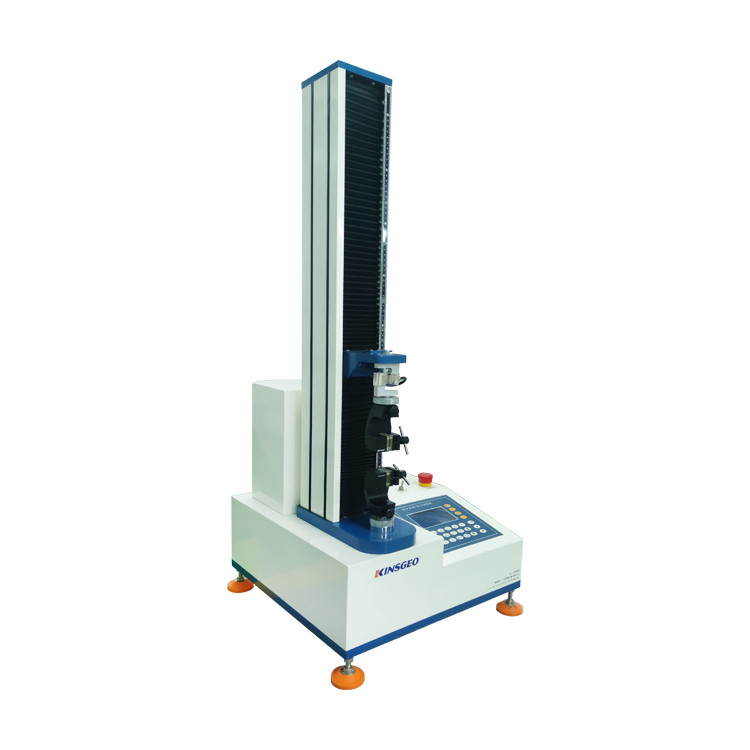

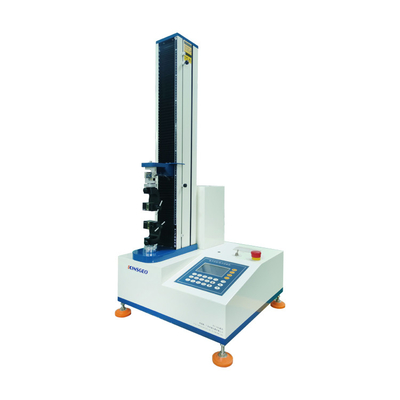

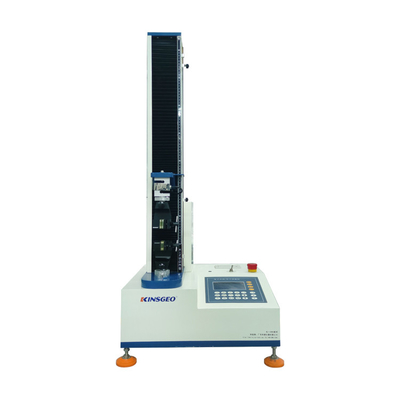

Weight: | 90kg | Product Name: | Computer Control Single Column Universal Testing Machine |
Power Supply: | 220V 50Hz | Application: | Universal Tester |
Standard: | ASTM | Motor: | AC Motor |
Warranty: | 1 Year | Accuracy: | +/-0.5% |
Name: | Universal Leather Tensile Strength Test Machine | Capacity: | 200 |
Stroke: | 650mm(excluding Clamp) | Tester Resolution: | Constant The Resolution |
Measuring Accuracy: | The Value ±1%/ The Value±0.5% | Effective Measuring Range: | 0.2%~100%(1 Grade)/0.4%~100%(0.5 Grade) |
Operation: | Computer Windows Operation | ||
High Light: | Compression Spring Testing Machine 220V,Films Tensile Tester,50Hz Compression Spring Testing Machine |
Use
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, textiles, paper, board and finished products.
Character
1.Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2.Have steady performance, high accuracy, powerful software function and easy operation.
3.Use the USA high-precision load cell.Machine accuracy is ±0.5%.
Software functions
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and British system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
Specification
Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,GB/T 453,ASTM E4,ASTM D1876,ASTM F2256,EN1719,EN 1939,ISO 11339,ISO 36,EN 1465,ISO 13007,ISO 4587,ASTM C663,ASTM D1335,ASTM D5733, ASTM D2261,ASTM D3330,ASTM F2458,EN 1465,ISO 2411,ISO 4587,ISO/TS 11405,ASTM D5034, ASTM D4632 | |
Model | KJ-1065A | KJ-1065B |
Range of speed | 0.5-500mm/min | 50-500mm/min |
Motor | Japan Motor | Servo motor |
Capacity choice | 20kg | 20kg |
Resolution | 1/150,000 | 1/250,000 |
Effective testing spec |
120mmMAX
|
|
Accuracy | ±0.5% | |
Operation method | Windows operation | |
Optional accessories | stretcher, air clamp,computer, printer, system operation manual | |
Weight | 80KG | |
Dimension | (W×D×H)58×58×125cm | |
Power | 1PH, AC220V, 50/60Hz | |
Stroke protection | Upper and lower protection, prevent over preset | |
Force protection | system setting | |
Emergency stop device | Handling emergencies |
