Product Details:
Payment & Shipping Terms:
|
| Certification: | Pcoc/Reach/IECEE/scoc/EPA/GS | Packaging Details: | Packaging In Wooden Cases,the Size Is Seen In The Product Description. |
|---|---|---|---|
| Supply Ability: | 200 Sets Per Month | Power: | Electronic,AC 220 V,AC220V 50Hz |
| Usage: | Uv Accelerated Aging Test Chamber | Weight: | 90kg |
| Product Name: | UV Aging Test Chamber | Standard: | ASTM,ASTM E8/A370/ISO 75001 |
| Warranty: | 1 Year | Power Of Lamps: | 40W |
| Lamp Amount: | 8 Pcs | Himidity Range: | 95% R.H |
| High Light: | Lamps Used Weathering Tester,UV irradiation Accelerate Aging Test,AC220V Aging Testing Machine |
||

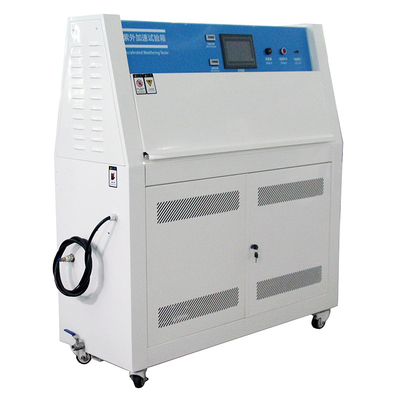

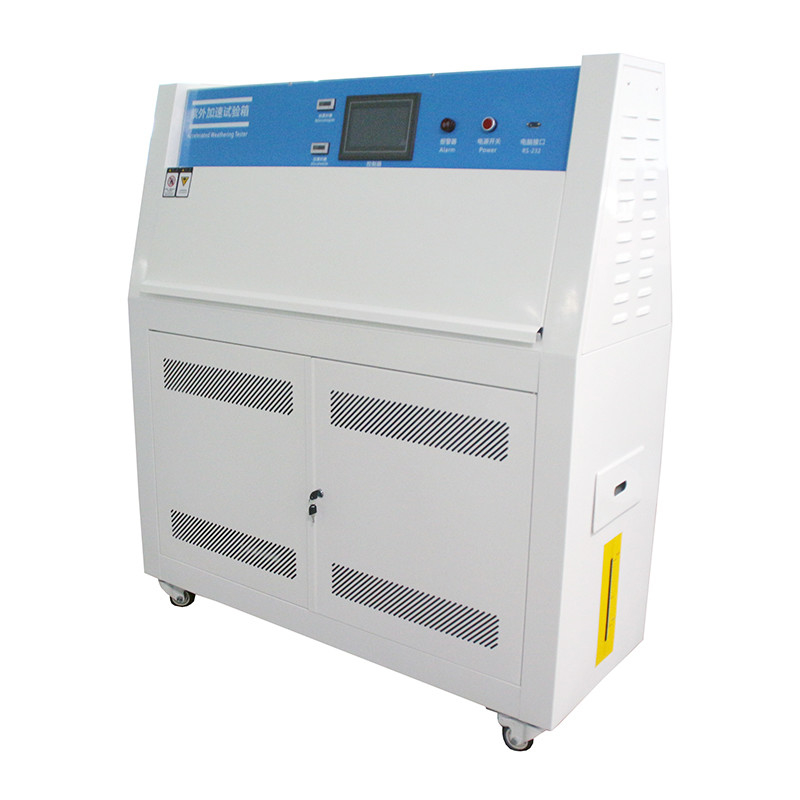

UV irradiation Accelerate Aging Test Lamps Used Weathering Tester Aging Testing Machine / Environmental Chamber Guangdon
Ⅰ.Product Applications:
UV accelerated weathering test chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.
Corresponding standard:
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
| Model | KJ-2029 | |
| Test chamber size(L×W×H)MM | 1170×450×500 | |
| Outside dimension(L×W×H)MM | 1350×540×1480 | |
| Chamber materials | 304# stainless steel | |
| Temperature range | RT+20℃~70℃ | |
| Temperature uniformity: | ±1℃ | |
| Temperature fluctuation: | ±0.5℃ | |
| Temperature control | PID SSR control | |
| Humidity range | ≥90%RH | |
| Controller | TEMI 880 programmable controller, touch screen, LCD display | |
| Control mode | Balance temperature humidity control (BTHC) | |

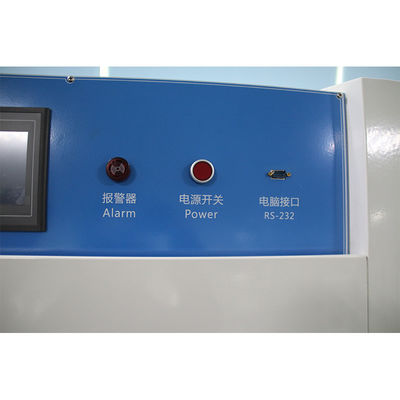

| Communication function | Be able to control the machine via computer using TEMI control software through RS-232 port on the machine | |
| Test cycle setting | Illumination, condensation and water spray test cycle is programmable | |
| Distance from specimen to lamp | 50±3mm (adjustable) | |
| Center distance between the lamps | 70mm | |

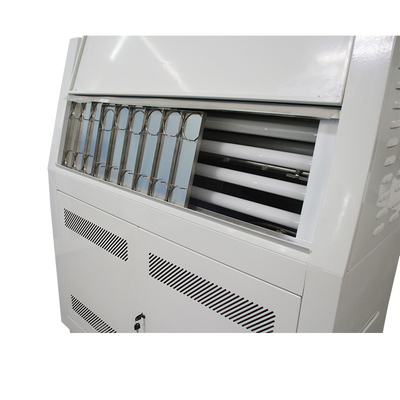

| Lamp power & length | 40W/Piece, 1200mm/Piece | |
| Lamps amount | 8 pieces of UVA-340 or UVB-313 imported lamps | |
| Lifetime of lamp | 1600Hours | |
| Irradiance | 1.0W/m2, adjustable directly on TEMI 880 touch screen controller | |
| Wavelength of ultraviolet light | UVA is 315-400nm and UVB 280-315nm | |
| Effective irradiation area | 900×210mm | |
| Irradiation black panel temperature | 50℃~70℃ | |
| Standard specimen size | 75×290mm/24 pieces | |
| Water depth for water channel | 25mm, automatically control | |
| Water consumption | 8L/day, tap water or distilled water | |
| Testing time | 0~999H, adjustable | |
| Power | 1 phase, 220V/50Hz /±10% 5KW | |
| Protection | Overload short circuit protection, over temperature protection, water lacking protection | |
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
