Product Details:
Payment & Shipping Terms:
|
Power: | Electronic,Hydraulic,AC220V 50Hz | Usage: | Universal Testing Machine,Tensile Testing Machine |
---|---|---|---|
Weight: | 90kg | Product Name: | Computer Control Single Column Universal Testing Machine |
Power Supply: | Can Be Customized,220V 50Hz | Application: | Universal Tester,peeling Strength Tester |
Standard: | BS.EN.ASTM,ASTM | Motor: | Panasonic Servo Motor |
Warranty: | 1 Year | Accuracy: | +/-0.5% |
Name: | Electronic Universal Testing Machine | Capacity: | 20 |
Stroke: | 650mm(excluding Clamp) | Resolution: | 1/250 |
Test Space: | 120mmMAX | Tester Resolution: | Constant The Resolution,Max Load 1/200000 |
Measuring Accuracy: | The Value ±1%/ The Value±0.5% | Effective Measuring Range: | 0.2%~100%(1 Grade)/0.4%~100%(0.5 Grade) |
Operation: | Computer Windows Operation | ||
High Light: | Adhesive Tape Peeling Strength Testing Machine,Digital Display Peeling Strength Testing Machine,Peeling Strength Universal Testing Machine 220V |

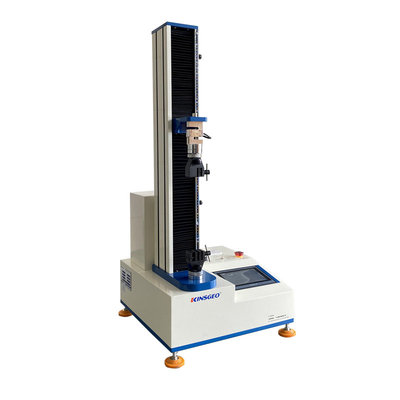

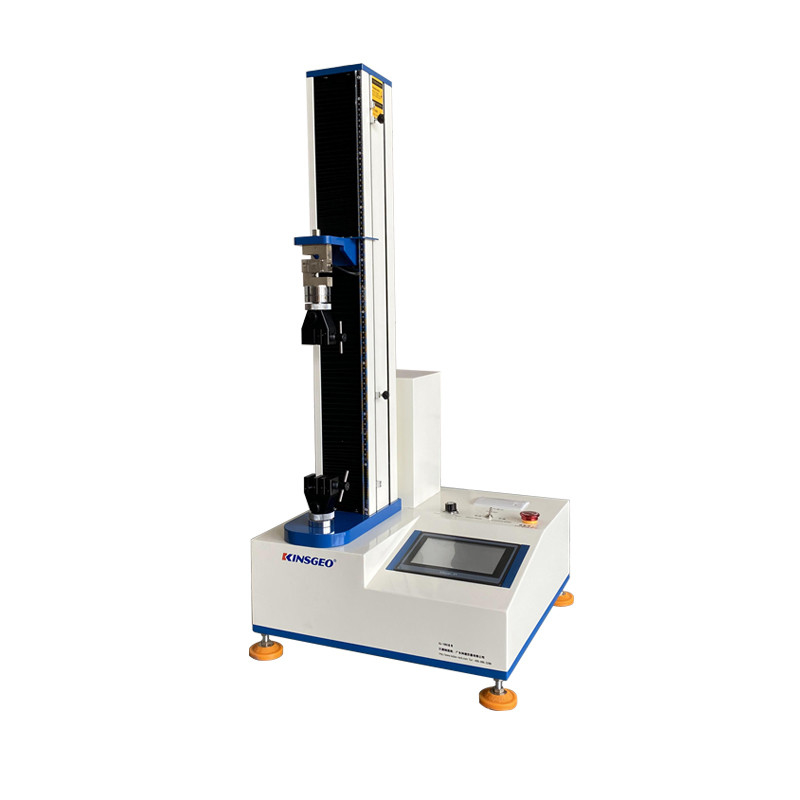

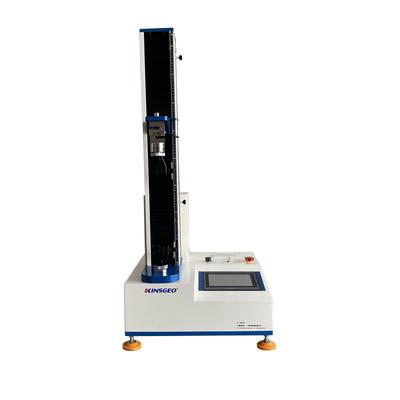

New Design Digital Display Adhesive Tape Peeling Strength Testing Machine Manufacture
Uses
This machine is designed specially for the adhesive,tape,plastic film,BOPP,PET industry. Used to test peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.
Character
1.Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2.Have steady performace, high accuracy, powerful software function and easy operation.
3.Use the USA high-precision load cell.Machine accuracy is ±0.5%.
Specification
Item | PSA Peel Adhesion Test Use KJ-1065 Peel Strength Tester | |
Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663,ASTM D1335,ASTM F2458, EN 1465, ISO 2411,ISO 4587,ISO/TS 11405, | |
Model | KJ-1065 A | KJ-1065 B |
Range of speed | 0.5-1000mm/min | 50-500mm/min |
Motor | Japan Servo Motor | AC Motor |
Capacity choice | 1,2,5,10,20,50,100,200,500kg optional | |
Resolution | 1/250,000 | 1/150,000 |
Effective testing spac | 120mmMAX | |
Accuracy | ±0.5% | |
Operation method | Windows operation | |
Accessories | English video, system operation manual | |
Optional accessories | 1 pcs grip | |
Weight | 80KG | |
Dimention | (W×D×H)58×58×125cm | |
Power | 1PH, AC220V, 50/60Hz | |
Stroke protection | Upper and lower protection, prevent over preset | |
Force protection | system setting | |
Emergency stop device | Handling emergencies |
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
In line with the trend of market globalization, Kejian Instruments registered its wholly-owned subsidiary - Kejian Industrial Hong Kong Limited in 2009, and began to explore the international market and provide Kejian instruments products to overseas customers. So far, Kejian instruments has provided high-quality products and services to customers in more than 50 countries and regions around the world, many of which have become long-term partners because of their recognition and trust in Kejian instruments.
Based on the recognition of Kejian Instruments, The National Standards Drafting Committee invited us to participated in the drafting and revision of a number of national standards, and was invited to attend the adhesive industry summit forum for many times, sparing no effort to contribute to the development of national and industrial technologies.
