Product Details:
Payment & Shipping Terms:
|
| Customized: | OBM, ODM, Software Reengineering | Motor: | Japan Panasonic Servo Motor |
|---|---|---|---|
| Capacity Choice: | 1.2.5.10.20.50.100.200.500kg Optional | Dimension: | (W×D×H) 58×58×125cm |
| Range Of Speed: | 0.5-1000mm/min | Effective Testing Space: | 120mm Max |
| Power: | Electronic,Hydraulic,AC 220 V,AC220V 50Hz | Usage: | Universal Testing Machine,Tensile Testing Machine |
| Product Name: | Computer Control Single Column Universal Testing Machine,High Quality 50kn Electronic Universal Tensile Testing Machine,Computerized 100t Universal Material Testing Machine With ASTM Usage,10T Computer Servo Universal Tensile Testing Machine Price | Application: | Steel,copper,fiber,fabric,universal Tester |
| Standard: | BS.EN.ASTM,ASTM,ASTM E8/A370/ISO 75001 | Warranty: | 1 Year |
| Accuracy: | +/-0.5% | ||
| High Light: | Universal Tensile Tester Machine,Laboratory Tensile Tester Machine |
||
Professional precision instrument manufacturers supply laboratory universal tensile tester machine

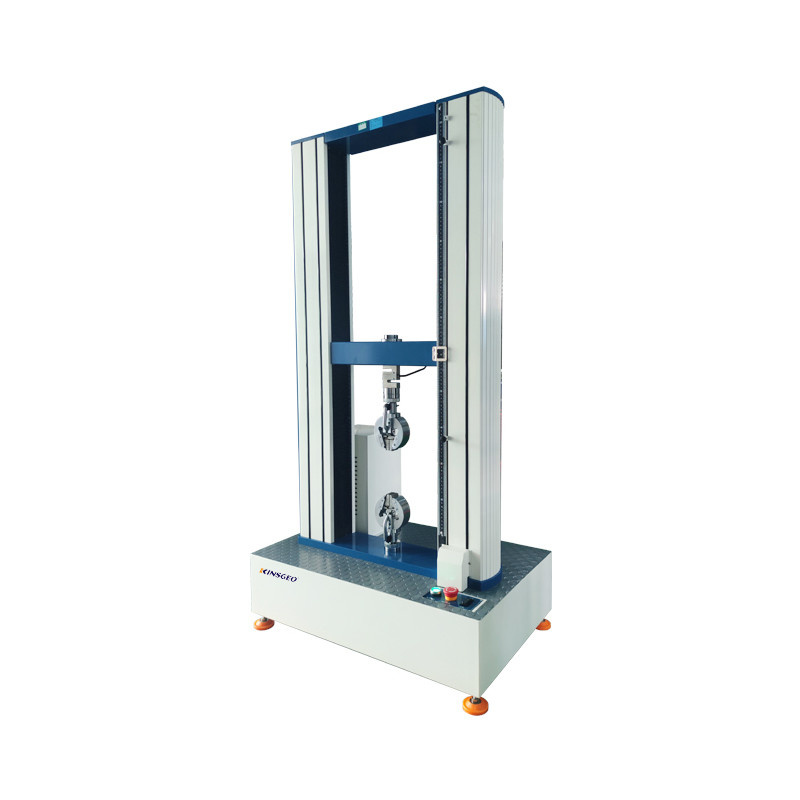

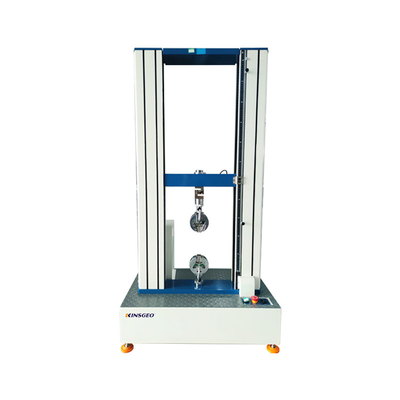

High Precision Universal Tensile Tester
Usage
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Product Description
A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
B. Having steady performance, high accuracy, powerful software function and easy operation.
C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.
| Range of speed | 0.5-1000mm/min |
| Motor | Japan Panasonic Servo Motor |
| Capacity choice | 1.2.5.10.20.50.100.200.500kg optional |
| Resolution | 1/250,000 |
| Effective testing space | 120mm max |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Accessories | computer, printer, system operation manual |

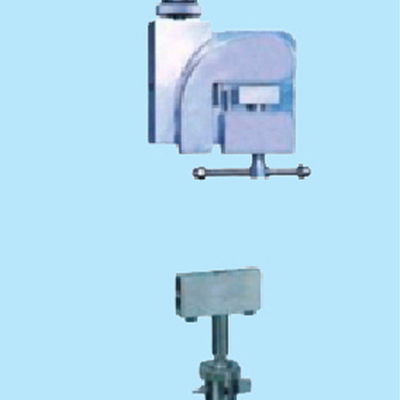

| Optional accessories | stretcher, air clamp |
| Weight | 80KG |
| Dimension | (W×D×H) 58×58×125cm |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
Contact Person: Miss. Silivia Zhang
Tel: 86-13925519875
Fax: 86-0769-28638013
