Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment

Certification
China GUANGDONG KEJIAN INSTRUMENT CO.,LTD certification
China GUANGDONG KEJIAN INSTRUMENT CO.,LTD certification
Kejian Universal Testing Machine quality is the best,after-sale service is also great.

—— Oscar Vargas

Paper Testing Machine is one of the best product.

—— Kritsana Praikongkadhrama

I'm Online Chat Now

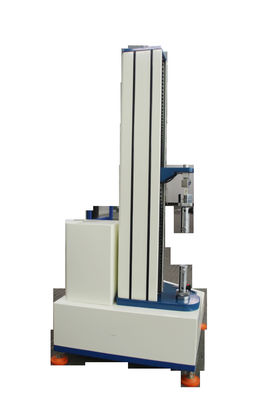

Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment

Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment
Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment

Large Image :  Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-1065
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Detailed Product Description
Motor:: Panasonic Servo Motor Control: PC
Test Speed:: 0.1-500mm/min Selectable Accuracy: ±0.5%
Capacity: 5,10,20,25,50,100,200,500kg Optional Sensor: USA Sensor
Pplication: Rubber ,plastic ,nylon ,leather And Etc Design Criteria: ASTM D903,GB/T16491 And Etc
Maximum Trip:: 1000mm Driving Method: High Precise Ball Screw
Grips: Different Material And Test Method With Different Grips
High Light:

200kg universal tensile tester

,

90 degree peel testing equipment

,

200kg peel testing equipment

Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment



Specifications:

Capacity choice 1,2,5,10,20,50,100,200,500kg optional
Stroke 650mm(excluding clamp)

Range of speed 0.5~500mm/min
Effective testing space 120mm
Weight 70kg
Accuracy ±0.5%
Operation method Windows operation
Resolution 1/250,000
Dimention (W×D×H)58×58×125cm
Motor Japan Panasonic servo motor
Accessories computer, printer, system operation manual
Optional accessories stretcher, one pair grips
Power 1PH, AC220V, 50/60Hz







Uses:


Universal Material Testing Machine​ is designed specially for the adhesive industry. Used to testing peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.


KeJian tensile strength tester Uses:


Universal Material Testing Machine is designed for quick and reliable tensile, compression, bending, shear, peel and fatigue cycling on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.


Character:

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.



Software Functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
 Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment 0

FAQ

1. Q: What is your warranty ?
- 12 months product warranty, but lifetime for services.Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.

Tensile Testing Machine

2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.

Tensile Testing Machine

3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory+ trade (integration),18 years focusing on test instruments field,9 years exporting experience.,warmly welcome to visit our plant(factory), we also support OEM and ODM.

Tensile Testing Machine

4. Q: After an order is placed, when to deliver?
- Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

5. Q: What about the warranty with after - sales services?
- 12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory.
What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.

Tensile Testing Machine

6. Q: What about the services and product' quality?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Engineers would be go abroad to training, repair and others help you need.


Rubber 90 Degree Universal Tensile Tester , 200kg Peel Testing Equipment 1
