2m/Min 200C Lab Hotmelt Printing Coating Testing Machines

2m/Min 200C Lab Hotmelt Printing Coating Testing Machines
2m/Min 200C Lab Hotmelt Printing Coating Testing Machines

Large Image :  2m/Min 200C Lab Hotmelt Printing Coating Testing Machines

Product Details:

Place of Origin: China
Brand Name: KeJian
Model Number: KJ-6018

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 2500 Set
Delivery Time: 5 Works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Set /Week
Detailed Product Description
Maximum Operating Temperature: 200℃ CVT, Maximum Coating Speed: 4.5m/min (optimal Coating Speed Is 1-2m/min)
Machine Size: 1150 * 518 (including 720 Motors) * 658 Mm (length * Width * Height) Machine Weight: 120 Kg
Power Supply: AC 220v (single-phase)/50Hz Machine Power: 1050w
High Light:

200C Printing Coating Testing Machines

,

2m/min hotmelt coating machine

,

200C hotmelt coating machine

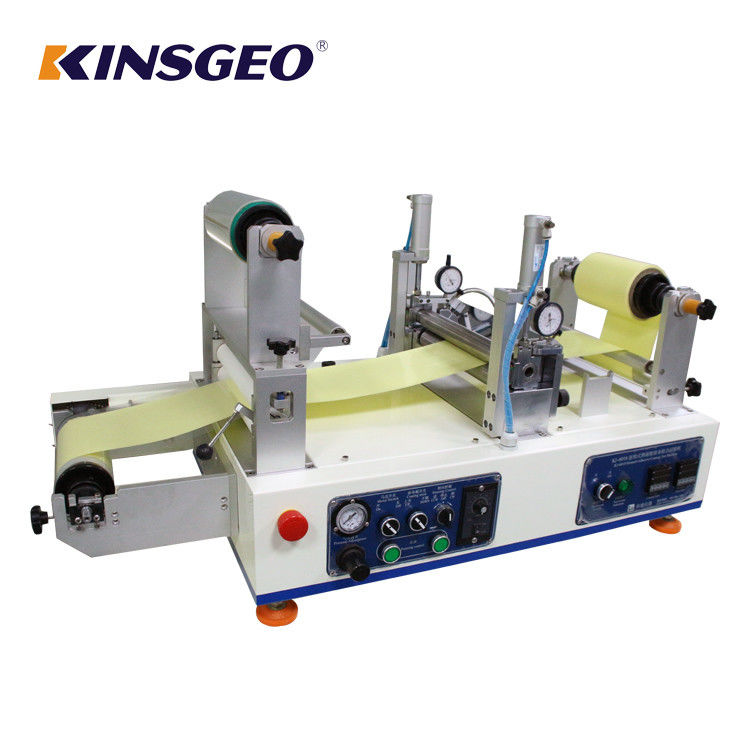

KJ-6018 Continuous hot melt adhesive coating and laminating test machine



KJ-6018 continuous hot melt adhesive coating and laminating machine is a laboratory mini-type hot melt adhesive coating and laminating machine which can be manufactured in small quantities and assembled by the mechanism of high precision modular coating station.Hot melt pressure sensitive adhesive can be directly coated on heat resistant substrate, or coated on the release paper and then the adhesive film to paste on different surface materials, such as paper, plastic model metal film, etc. (the best experimental substrate recommended to use 50 micron high temperature PET film).



2m/Min 200C Lab Hotmelt Printing Coating Testing Machines 0

2m/Min 200C Lab Hotmelt Printing Coating Testing Machines 1



Characteristics



· high precision modular coating station structure assembly.

· the maximum operating temperature is 200℃

· independent pt-100 high-precision PID temperature control mode for the upper rubber wheel and rubber groove

· use the micrometer as the dividing head to precisely adjust the coating gap between the upper and lower rubber wheels to control the coating thickness.The maximum coating gap is 500 microns (substrate thickness), and the optimum coating thickness is ≥20 microns (coating accuracy is ±5 microns).After the thickness setting, the rubber wheel can be indirectly locked to prevent the gap from changing.

· The maximum width of the coil is 200mm (the maximum width of the sheet is 260mm) and the maximum coating width is 160mm.The coating width is adjusted by two Teflon baffles in the glue tank.Unlimited length of adhesive coating, automatic winding.

· CVT, maximum coating speed: 4.5m/min (optimal coating speed is 1-2m/min)

· Release reel can adjust knob to change tension release.

· The material receiving reel can adjust the mechanical tension control.

· Heating rod, rubber wheel and rubber groove can be quickly removed from the body to remove residual glue.

· Machine size: 1150 * 518 (including 720 motors) * 658 mm (length * width * height)

· Machine weight: about 120 kg

· Power supply: AC 220v (single-phase)/50Hz

· Machine power: 1050w
