|Usage Strength:||Test Chamber||Warranty:||12 Months|
|Aplication:||Temperature Humidity||Inner Size(cm):||50×60×50|
|Humidity Range:||65～98％R.H||Rain Falling Time:||0～9999min|
|Xenon Lamp Total Power:||1.8KW||Power:||6.5KW|

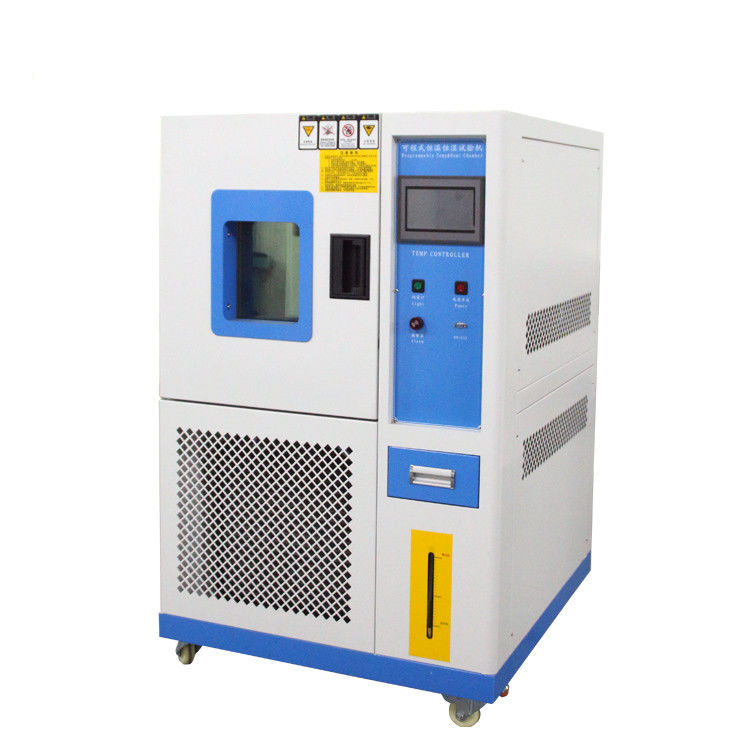

AC 380V 3 phase 5 lines Constant Temperature and Humidity Machine with Relative Humidity Controlling
1. Outside bile uses high quality (t=1mm)SUS304 steel plate numerically-controlled machine tool to process,outside hull spray molding treatment,make chamber more bright and clean.
2. high density glass cellucotton,insulation thickness is 80mm.
3. Use long axis fan motor,heat and cold resistance,stainless steel siroco fan,to make sure strength convection and vertical diffusion cycle.
4. Between door and chamber,use double-deck thermostability sealing strips,to make sure testing area is airtight.
5. Use no-retroaction doorknob,easy operation.
6. In the bottom of chamber,use high quality stationary type PU running wheel.
7. Observing window uses multilayer hollow toughened glass.
1. Compressor uses France TAIKANG whole sealing compressor.
2. Cooling system uses Unit or binary low temperature return circuit system.
3. US “AIGLE” drying and filtering device,Taiwan AIRMENDER oil separator,Italy Castel solenoid valve.
Full spectrum xenon lamp
Various selective filtration system.
Water spray function.
Relative humidity controlling.
Testing chamber air temperature controlling system.
Irregular shape sample supporting structure.
Superior Xenon arc lamp.
Xenon lamp lifelong is decided by the illumination level of radiation intensity,the lifelong is about 1600 hours,it's easy to change the lamp.
Chamber Inner Size and Structure:
|Inner size(cm):D×W×H||50×60×50 cm|
|Temperature range||Temperature range|
|Rain falling time||0～9999min (adjustable)|
|Rain falling period||1～240minutes,interval(break),adjustable|
|Xenon lamp total power||1.8KW(lifetime:1600hours)|
|Time Controller||Imported programmable time computer integrated controller|
|Accuracy range||temperature ±0.1℃,humidity±1％R.H,indicate accuracy:temperature,±0.1℃,humidity,±1％R.H|
|Temperature Humidity Sensor||PTR Platinum Resistance,PT100Ω/MV|
|Heating system||autonomous system,nichrome electric heating heater|
|Humidification System||isolated type,SUS steel surface evaporative humidifier.|
|Blackboard temperature||thermometal blackboard thermometal.|
|Temperature controller||Imported microcomputer temperature humidity integration controller|
|cyclic system||low noise,air-condition type motor, multiple-pin Centrifugal rotor.|
|Outside chamber material||SUS304 stainless steel.|
|Inner chamber material||SUS304 stainless steel plate|
|Sample shelf material||SUS304 stainless steel plate|
|Doorframe heat insulation||good heat and cold resistance,aging Silicone rubber door and sealing strips.|
|Standard configuration||non-browning glass observing window 1pcs,xenon lamp 1pcs|
|Safeguard protection||leakage,short circuit,over temperature,short of water,motor overheating,over-current protection,Backup data for power fail|
|Voltage power||AC380V±10％ 50±0.5Hz 3 phase 5 lines|
|Testing standards||GB/T2423.24-1995 GB/T16422.2 GB9344 GB/T1865-97 ASTM G 155-04a|
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
DongguanKejian Instrument Co., Ltd is a professional company concentrating on all kinds of materials testing industries, which is founded in 2003. The production base is located in Dongguan city,Guangdong Province,
The main products of the company are high precision computer type Peel strength tester,Electronic peel strength tester,High/Low temperature Retention tester,Primmary adhesive tester,Loop tack tester,KEJIAN equipment widely used in the adhesive, adhesive tape, double-sided adhesive tape, textured paper tape, PET electronic materials, protective film, since the mucous membrane of viscous material such as testing, testing include stripping force, force, temperature retention. Shear force under normal temperature, high temperature and the shear stress, heat retention, viscous fluid at the beginning. At the beginning of the annular viscous force. High and low temperature aging, etc.
