500N, 1KN, 2KN Optional Stainless Steel Tensile Testing Instrument With 0.5~500mm/min Speed

China 500N, 1KN, 2KN Optional Stainless Steel Tensile Testing Instrument With 0.5~500mm/min Speed supplier
500N, 1KN, 2KN Optional Stainless Steel Tensile Testing Instrument With 0.5~500mm/min Speed supplier 500N, 1KN, 2KN Optional Stainless Steel Tensile Testing Instrument With 0.5~500mm/min Speed supplier

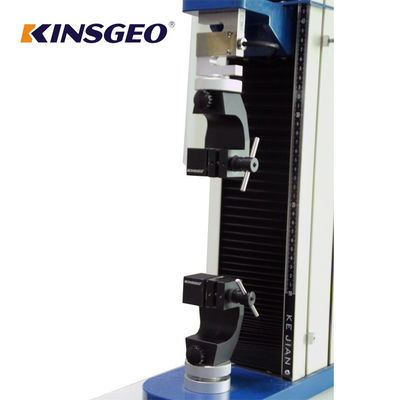

Large Image :  500N, 1KN, 2KN Optional Stainless Steel Tensile Testing Instrument With 0.5~500mm/min Speed

Product Details:

Place of Origin: China
Brand Name: KeJian
Certification: ISO,CE and etc.
Model Number: KJ-1065C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Accuracy: ±1.0% Color: White
Warranty: 12 Months Standards: ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7
Capacity: 1、2、5、10、20、50、100、200kg Optional Stroke: 650mm
Range Of Speed: 0.5~500mm/min Test Space: 120mm MAX
Power: 1PH, AC220V, 50/60Hz Resolution: 1/50,000
Weight: 60KG

500N, 1KN, 2KN Optional Stainless Steel Tensile Testing Instrument With 0.5~500mm/min Speed





Meet The Standard:

1. GB/T4689.20-1996 measuring fastness of leather’s adhesion

2. QB/T2710-2005 measuring leather’s expansion and the rate of elongation

3. QB/T2711-2005 measuring tear force of leather
4. QB/T2712-2005 measuring leather’s strength and stretch of spherical crack test
5. TAPPI T-494,ISO 1924,ISO12625-4,AS/NZ1301.448s,BS EN ISO1924-2,CPPA D34,DIN 53112,SCAN P38

6. Breaking strength (sample method) GB/TT3923.1 ,ISO13934.1 , ASTM D5035

7. (Grab method) GB/T3923.2 ISO13934.2 ASTM D5034

8. Tear strength (tongue-shaped tear) GB/T3917.2 ISO13937.2 ASTM D2261
9. (Trapezoidal tear) GB/T3912.3 ISO9074.4 ASTM D5587

10. Seam Slippage GB/T13772.1/2/3 ISO13936.1/2 ASTM D434

11. Peel strength FZ/T01085 ASTM D2724/3936 AATCC 136 FZ/T80007.1 FZ/T01010 FZ/T60011

12. Ball Bursting GB/T19976 FZ/T01030 ISO3303 ASTM D3787/6796

13. Elastic Recovery FZ/T70005 FZ/T70006 BS 4952

14. Single Yarn Strength GB/T3916/14344 ISO2062 ASTM D 2256

15. Other standards GB4689.6 GB/T13763 GB/T13773 GB/T14800

16. GB/T15788 GB/T16989 FZ/T01031 FZ/T20019

17. FZ/T60005 FZ/T60006 FZ/T70007 ISO 13935.1/2

18. ASTM D1683 ASTM D4964 ASTM D5733/5735 BS 3320



Technical parameter:



Model  Plastic Film Universal Tensile Test Instrument
Max load 500N, 1KN, 2KN (optional)
Accurate grade 1 grade /0.5 grade
Effective measuring range Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracy Tolerance ±1% / tolerance ±0.5%
Tester resolution Max load 1/200000, and constant resolution
Load sensor Basic configurationsensormax load:from four sensors to choose one
Effective tensile stroke 800mm (can be widened according to customers requirement )
Effective testing width 300mm
Testing speed From 0.001 to 500mm/min
Accruacy of displacement measurement Tolerance: ±0.5% / tolerance: ±0.2%
safety Electronic-limit protection
Testing platform moving device Fast /slow ( two speeds to control), can jog
Return Back Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%,automatic protection
fixture A set of tensile fixture
Machine size 650*360*2100mmm (L*W*H)
Power system Panasonic AC Servo Motor + Driver + high-precision ball screw
Temperature range From normal temperature to 200 degree
Temperature display Digital display
Inside space 200*300*500mm (W*L*H )
Cooling system Compression from France
Power supply 220V50HZ or according to the requirement
Power 0.4KW ( depending on different demand of force, using different motor)
weight 150 Kg


Main features:

Plastic Film Universal Tensile Test Instrument is suitable for all kinds of textile, rubber, plastics, synthetic

leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and

products industry to do tensile,compression, bending, shear, peel (90 degrees and 180 degrees),

tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.



Meet the criteria:
"GB/T16491-1996 electronic universal testing machine"



Main features:
1. Good design. My company has been great emphasis on product appearance and development of many

models with comparable foreign products are aluminum alloy surface, and electrostatic spray chart.
2. Force value digital LCD display, a discernible tension or pressure, LCD interface, easy to read.
3. Three types of units: N-Kgf-Lbf optional and can automatically swap.
4.LCD liquid crystal display with backlight, can be used in low-light environment.
5. Single determination, you can read the tension and compression peaks in both directions, and automatic

and manual reset;
6,With travel limit and the overload stop function.
7. Desktop single-column structure is beautiful and delicate, seating operation, easy and natural.



Applicable industry:

Plastic Film Universal Tensile Test Instrument widely used in wire and cable, hardware,

electronics, packaging,

printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions

of higher learning; research laboratories; inspection of arbitration, and technical supervision departments

and other industries, is quality management, basic equipment character test.
