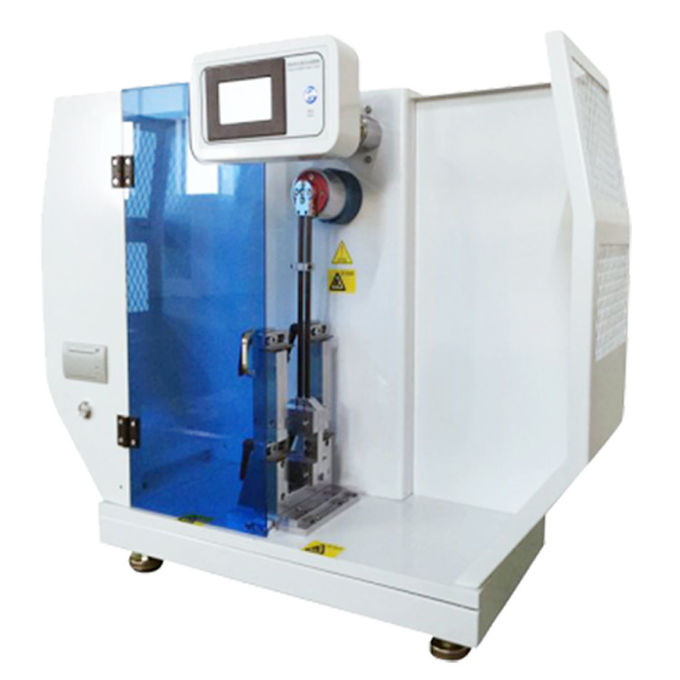

Electronic Izod Impact Testing Equipment with LCD Touch for Plastic 560* 300* 840mm

China Electronic Izod Impact Testing Equipment with LCD Touch for Plastic 560* 300* 840mm supplier
Electronic Izod Impact Testing Equipment with LCD Touch for Plastic 560* 300* 840mm supplier Electronic Izod Impact Testing Equipment with LCD Touch for Plastic 560* 300* 840mm supplier Electronic Izod Impact Testing Equipment with LCD Touch for Plastic 560* 300* 840mm supplier

Large Image :  Electronic Izod Impact Testing Equipment with LCD Touch for Plastic 560* 300* 840mm

Product Details:

Place of Origin: Dongguan China
Brand Name: KEJIAN
Certification: ISO,CE and etc
Model Number: KJ-3090

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Export Strong wooden case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Temperature: (15-35)℃ Impact Speed: 3.5m/s
Impact Energy: 1J,2.75J,5.5J,11J,22J Bob Angle: 150°±1°
Impact Center Distance: 335mm Impact Blade Fillet Radius: 0.8±0.5mm
Distance From Impact Blade To Jaw: 22±0.2mm Weight: 80KG
Outside Size: 560* 300* 840mm

560* 300* 840mm 150° 80.00KG Electronic LCD Touch Izod Impact Testing Equipment for Plastic

Uses:

   Digital izod impact testing equipment is used to test the impact toughness of the non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic appliance and insulation materials. It is widely used in the scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment. The instrument takes a simple structure and takes convenient operation and high testing precision to meet the standard demand of ISO179—92, GB1043—93. E-type impact testing machine adopts circular grating angle measurement technology to measure the impact strength, pre-elevate angle ,up angle and the average angle digitally. Owing to the functions of energy loss correction and test report printed automatically ,the izod impact testing equipment has the advantages of high precision , good stability and wide measurement range .
  The digital izod impact testing equipment is in line with international standard ISO180-1992”plastic-hard materials-determination of izod impact strength”, national standardGB/T1843—1996”rigid izod impact test method” and the machinery industry standard ”plastic izod impact testing machine”.




Designing standard:

GB/T1843, ISO179---92, ISO180, GB/T21189, GB/T2611, JB/T8761

Characteristics:

    English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.



Specification



Mode:KJ-XB5.5KJ-XB22
Impact speed:3.5m/s
Pendulum energy:1.0J,2.75J,5.5 J11J 22J
Pendulum angle:150degree
Impact center distance:335mm
Accuracy:±0.1%
Resolution:1%
Distance between impact blade and clamp mouth22.0mm±0.2mm
Blade fillet radiusR=0.8mm±0.2mm
Energy loss:1.0J—2%;2.75J—1%;5.5J—0.5%11J,22J—0.5%
Specimen type:Best type of specimen is 1 type.
Need the space:Front and back 0.4m,left and right 1.5m,head 1.5m
Power:(220-15%~220+10%)VAC 50HZ 0.1KW


Digital izod impact testing equipment standard configuration


itemnamequantityunitremark
hostImpact testing machine1set
attached1J ballistic pendulum1set
2.75J impact weight1couple
5.5J impact weight1couple
model1piece
wrenth1set









Electronic Izod Impact Testing Equipment with LCD Touch for Plastic 560* 300* 840mm

IZOD Impact Tester
