Product Details:
Payment & Shipping Terms:
|
| Model: | KJ-1066B | Capacity: | 10-2000KG |
|---|---|---|---|
| Accuracy: | ±0.5% | Resolution: | 1/500000 |
| Unit: | G,kg,N,KN,LB(switchover Free) | Operation Method: | Windows Operation |
| Sensor: | USA Sensor | Kind Of Drive: | High-precision Ball Screw |

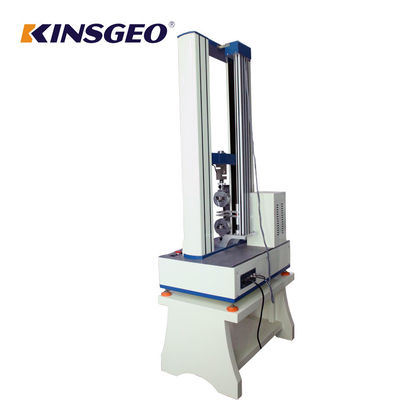

USA Sensor 30T Lab Material Tensile Strength Testing Machine With One Year Warranty For Rubber
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
30T Lab Material Tensile Strength Testing Machine is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
|
Technical parameters:30T Lab Material Tensile Strength Testing Machine
|
|||
|
Maximum load
|
100KG,200KG,500KG, 1000KG,option
|
||
|
Accurate grade
|
1 grade /0.5 grade
|
||
|
Effective measuring range
|
0.2% to 100% (1 grade)/ 0.4% to 100% (0.5 grade)
|
||
|
Measuring accuracy
|
Display the value ±1/Display the value±0.5
|
||
|
Tester resolution
|
Max load 1/200000,constant the resolution
|
||
|
Load sensor
|
Basic configurationsensormax load: one
Extended configurationcan add more sensors
|
||
|
Effective testing width
|
400mm(can be widened according to customers requirement )
|
||
|
Effective tensile stroke
|
1000,1200,1400mm can be increased the height according to customers requirement
|
||
|
Range of testing speed
|
0.5~500mm/min
|
||
|
Accuracy of displacement measurement
|
Tolerance: ±0.5%/ tolerance: ±0.2%
|
||
|
Deformation of measured systemaccording to the requirements
|
Min span :10mmMax range of deformation 800mm
Extended deformation : Min span: 25mm50mm100mm, range of deformation 5mm10mm25mm |
||
|
Accuracy of measured deformation
|
Tolerance :±0.5 according to requirement of customer to choose the larger or small deformation
|
||
|
safety
|
Electronic-limit protection
|
||
|
Testing platform moving device
|
Fast /slow two speeds to control,can jog
|
||
|
Back to function of testing platform
|
Manual or automatic operationAfter the test, the moving iron return to initial position with the highest speed by manual or automatic operation
|
||
|
Overload protection
|
Overload 10,automatic protection
|
||
|
fixture
|
A set of tensile fixture
|
||
|
Machine size
|
1070×560×2100mm(lenght*width*height)
|
||
|
Motor
|
Panasonic AC servo motor and drive
|
||
|
power
|
220V50HZ
|
||
|
power
|
0.75KWdepending on different demand of force, using different motor
|
||
|
weight
|
about 500Kg
|
||
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
