Payment & Shipping Terms:
|Usage Strength:||Test Chamber||Warranty:||12 Months|
|Aplication:||Temperature Humidity||Temperature Range:||-20 ℃ ~ 100 ℃|
|Humidity Range:||20% ~ 98% RH||Heating Rate:||-20 ℃ ~ 100 ℃ About 25min|
|Cooling Rate:||20 ℃ ~ -40 ℃ About 60min||Atmospheric Pressure:||86 ~ 106Kpa|

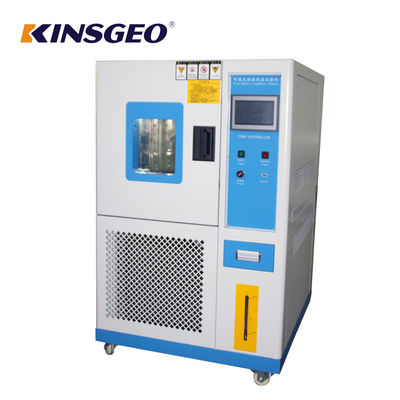

86 ~ 106Kpa SUS # 304 Stainless Steel High And Low Temperature Test Chamber With Air Cooled Condenser
KJ-2091 100L Temperature And Humidity Controlled Cabinets Of High / Low Temperature Test Chamber can simulate high temperature and humidity, high temperature and low humidity, low temperature and low humidity and other environmental conditions of the test conditions for testing materials, heat, dry, moisture and cold resistance. To confirm the aging of the product and resistance to special environmental performance.
|Internal dimensions||Designed as required|
|Volume||can be designed as required|
|Temperature range||-20 ℃ ~ 100 ℃|
|Humidity range||20% ~ 98% RH|
|Temperature and humidity distribution uniformity||± 2 ℃ ± 3% RH|
|Temperature and humidity stability||± 0.3 ℃ ± 2.5% RH|
|Heating rate||-20 ℃ ~ 100 ℃ about 25min|
|Cooling rate||20 ℃ ~ -40 ℃ about 60min|
1. Compressor: France imported original compact compressor
2. Refrigerant: environmentally friendly refrigerant
3. Condenser: air-cooled condenser
4. Evaporator: fin-type multi-stage automatic load capacity adjustment
5. Other accessories: desiccant, oil separator, high and low pressure repair valve, protection switch
6. Expansion system: capacity control of the refrigeration system
Temperature and humidity regulation: balance of temperature control and humidity control, to P.I.D. way to control the SSR, the system heating and humidification is equal to the amount of heat loss, it can be long-term use of stability.
Internal material: SUS # 304 stainless steel (or a mirror plate)
External material: SUS # 304 stainless steel
Insulation material: high density hard Polyurethane foam insulation
1, allows the use of temperature range 0 ~ 35 ℃
2, performance guarantee range: 5 ~ 35 ℃
3, relative humidity: not more than 85%
4, atmospheric pressure: 86 ~ 106Kpa
5, no strong vibration around
6, no direct sunlight or other direct heat exposure
7, humidification water supply conditions: resistivity of not less than 500MΩ / M of pure water
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
