380V Irregular Surface Plastic Testing Machine / Durability Semi Automatic Impact Testing Machine

China 380V Irregular Surface Plastic Testing Machine / Durability Semi Automatic Impact Testing Machine supplier

Large Image :  380V Irregular Surface Plastic Testing Machine / Durability Semi Automatic Impact Testing Machine

Product Details:

Place of Origin: Dongguan China
Brand Name: kEJIAN
Certification: ISO,CE and etc
Model Number: KJ-300B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: 5-10 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Usage Strength: Testing Machine Aplication: Plastic
Warranty: 12 Months Impact Energy: 300J、150J
Impact Speed: 5.2m/s Power: Three Phase-four Wire 50Hz、380V、180W(main Motor)
Outside Dimension: 820×600×1400mm Jaw Round: R1—1.5mm



380V Irregular Surface Plastic Testing Machine / Durability Semi Automatic Impact Testing Machine





Uses:



KJ - 300 - b type impact tester is used to measure metal materials in dynamic load resistance under the impact of performance to determine materials in dynamic load of the property.



This machine according to the national standard GB/T3808-2002 "pendulum impact tester, development and production, according to GB/T229-1994" metal charpy notch impact test method "on the metal material impact test, the biggest impact energy for 300 j, and comes with a 150 j pendulum, the sample section for 10 x 10 mm; Testing machine has a greater impact energy, so the main for test impact toughness large black metal, such as steel and alloy.



This tester use pendulum impact energy before and after the impact of the residual energy only difference between scale display way, get sample absorption work; Operation for the semi-automatic control machine, simple operation, high working efficiency, and after the thrust sample using the surplus energy is automatically set up and ready for the next impact test, so in the continuous do impact test laboratory and a lot to do impact test of metallurgy, machinery factory and other departments more can reflect its advantages.



If you want to enlarge the machine function, according to ASTM electronics - 81 "metal material notch test impact test method of impact test, can also be customized special to comply with this standard pendulum (300 j, 150 j and support a pair of)





Specification:



Model KJ-300B
impact energy 300J,150J
Scale scale range and division value

Energy range: 0—300J 0—150J

Every small grid division value: 2J 1J

Pendulum force value (impact constant)

0—300J M=160.7695N.m

0—150J M=80.3848N.m

Pendulum preliminary Yang Angle 150°
Pendulum shaft center of rotation to impact point (sample center) distance 750mm
Impact speed 5.2m/s
Sample support span 40mm
Jaw round R1—1.5mm
Impact blade round R2—2.5mm
Sample specifications 55×10×10mm
Outside dimension 820×600×1400mm
Power supply three phase-four wire 50Hz,380V,180W(main motor)





FAQ:

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3.Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


Pictures:

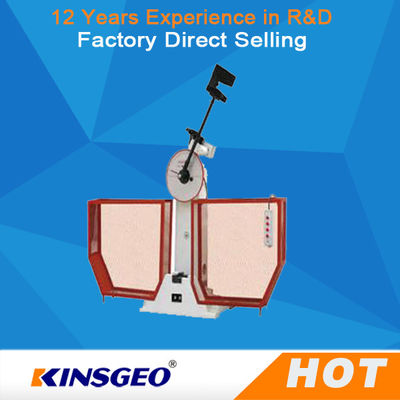

380V Irregular Surface Plastic Testing Machine / Durability Semi Automatic Impact Testing Machine
