100-300RPM Speed Package Testing Equipment Vibration Testing Equipment Large Capacity

China 100-300RPM Speed Package Testing Equipment Vibration Testing Equipment Large Capacity supplier
100-300RPM Speed Package Testing Equipment Vibration Testing Equipment Large Capacity supplier 100-300RPM Speed Package Testing Equipment Vibration Testing Equipment Large Capacity supplier

Large Image :  100-300RPM Speed Package Testing Equipment Vibration Testing Equipment Large Capacity

Product Details:

Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-7030

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: 5-10 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Motor Power: 5A Aplication: Paper
Warranty: 12 Months Speed: 100-300RPM
Weight: 100 KG Power: 220V 50Hz Single Phase
Dimention: 110×110×70cm Standards: EN71 ANSI、UL、ASTM、ISTA



100-300RPM Speed Package Testing Equipment Vibration Testing Equipment Large Capacity





Uses:



This machine is used to simulation testing damage between transport for various package stuff, PC panal, electrical products ect.





Characters:



Have the cushion start function, in the work the noise is extremely low.

Unique slideway structure makes clamping specimen conveniently and reliably.





Specifications:



Model KJ-7030
Design Standard EN71 ANSI,UL,ASTM,ISTA
Speed 100-300RPM
Speed display

0.1RPM

Vibration method

reciprocation type

Vibration amplitude

1 inch(25.4mm) +15%, to agree with ISTA/EN71 transportation standard

Max load 100 KG
Effective test area 100×90cm
Speed accuracy

not more than ±3RPM

Time setting range 0~99.99hour
Motor power

1HP

Max current 5A
Power 220V 50Hz single phase
Dimention

110×110×70cm





RFQ:

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


Pictures:

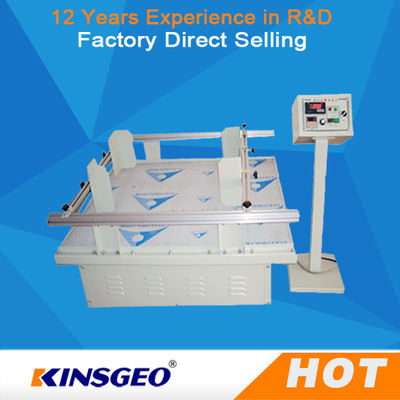

100-300RPM Speed Package Testing Equipment Vibration Testing Equipment Large Capacity
