220V / 50Hz Luggage Testing Machines For Luggage Reciprocating Fatigue Testing

China 220V / 50Hz Luggage Testing Machines For Luggage Reciprocating Fatigue Testing supplier
220V / 50Hz Luggage Testing Machines For Luggage Reciprocating Fatigue Testing supplier 220V / 50Hz Luggage Testing Machines For Luggage Reciprocating Fatigue Testing supplier

Large Image :  220V / 50Hz Luggage Testing Machines For Luggage Reciprocating Fatigue Testing

Product Details:

Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-9021

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: 10-20 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Test Speed: 5-50c.p.m, Adjustable Vibration Way: Spring Type,1.79kg/mm
Material: Cold Rolled Sheet+powder Coated Usage: Trunk Vibration Impact, Luggage Oscillating Impact Test Machine
Test Time: 1-999999, Automatic Stop Working Application: Luggage, Trunk, Leather Case' Vibration
Power: 1φ、220V/50Hz Weight: 150kg

220V / 50Hz Luggage Testing Machines For Luggage Reciprocating Fatigue Testing







Uses:



This machine is used for the luggage reciprocating fatigue test. The luggage will be stretched in the test, thereby to check resulting gap, loose, connecting rod failure, and deformation.





Specifications:



Test stroke 20~100cm adjustable
Test position 4 point sensor location
Tensile speed 0~30cm/sec adjustable
Compression speed 0~30cm/sec adjustable
Test times 1~999999
Test dynamic pneumatic cylinder
Specimen height highest 200cm
Accessories luggage seat clamped
Working pressure 5~8 kg/cm²
Dimention 120X120X210cm
Weight 150kg
Power 1φ,220V/50Hz





RFQ:



Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent after sale service:

1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.



3.Good Packaging:

Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.





Pictures:

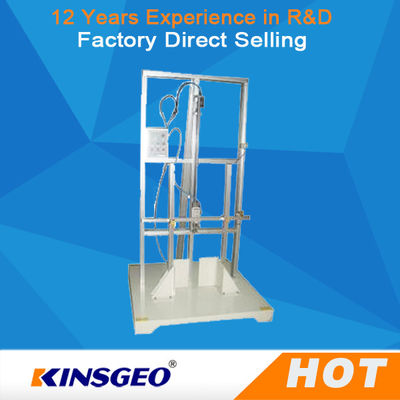

220V / 50Hz Luggage Testing Machines For Luggage Reciprocating Fatigue Testing
