AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty

Good quality Peel Adhesion Test Equipment for sales
Good quality Peel Adhesion Test Equipment for sales
Kejian Universal Testing Machine quality is the best,after-sale service is also great.

—— Oscar Vargas

Paper Testing Machine is one of the best product.

—— Kritsana Praikongkadhrama

I'm Online Chat Now

AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty

China AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty supplier
AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty supplier AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty supplier

Large Image :  AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty

Product Details:

Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-5157

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: 20-30 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Model: KJ-5157 Power: AC220V, 50 Hz 4 A
Cylinder Stroke: Main Cylinder Stroke 600 Mm. Vice Cylinder Stroke 250 Mm Data OutputCylinder Output: Main Cylinder Maximum Output 150 Kg. Four Deputy Cylinder Maximum Output 100 Kg
Force Sensors: Maximum Capacity Of 100 Kg Force Value Display Precision: 10 G
Air Pressure Display Resolution: 0.2 Mpa Use Air: 5 KGF/cm2



AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty





Standards:



GB/T 10357.1-1989 furniture mechanical properties testing table kind of strength and durability

GB/T 10357.4-1989 furniture mechanics performance test cabinet kind of stability

GB/T 10357.5-1989 furniture mechanics performance test cabinet kind of strength and durability

GB/T 10357.6-1989 furniture mechanics performance test single bed strength and durability

GB/T 10357.7-1989 furniture mechanical properties testing table class stability





Uses:



Suitable for family, hotel, guesthouse, hotel, etc. Various kinds of occasions to use table class, cabinet kind, bed (single hard paving) products resistance to static load test, stability test, durability test, impact test. Is not suitable for and buildings have connection of the furniture. Cabinet table bed comprehensive testing machine simulation table tank class in normal use and habitual misuse, by one or repetitive loading conditions is the strength or bear ability.





Description:



1, seamless steel pipe frame type structure. Surface hard chromium plating processing. Test position can be easily and can adjust. Convenient do different furniture related physical properties test.

2, the force sensor and digital force value display system, respectively show each channel real-time strength situation. And have the most to value the function of record.

3, internal control PLC programming control. Action accurate, low failure rate.

4, all imported pneumatic fittings and cylinder products.





Specification:



Model KJ-5157

Power

AC220V, 50 hz 4 a

This machine use air

5 KGF/cm2

Cylinder stroke

main cylinder stroke 600 mm. Vice cylinder stroke 250 mm

Cylinder output

main cylinder maximum output 150 kg. Four deputy cylinder maximum output 100 kg

Force sensors

maximum capacity of 100 kg

Force value display precision

10 g

Air pressure display resolution

0.2 mpa





RFQ:



Why choose us?



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2. Excellent after sale service:

1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.



3. Good Packaging:

Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.





Pictures:

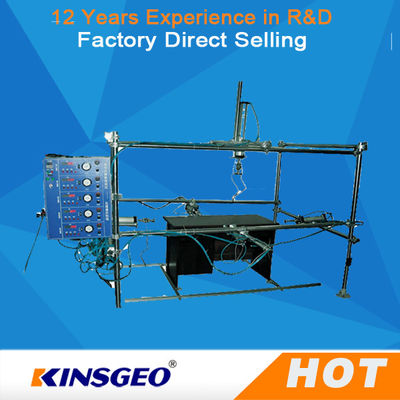

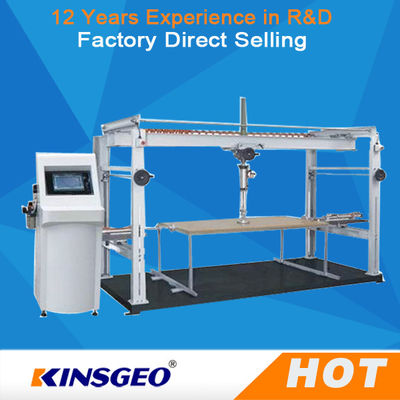

AC220V Automatic Durability Universal Test Equipment 100kg Maximum Capacity with One Year Warranty
