1600 Hours Rubber Plastic Uv Accelerated Weathering Tester Touch Screen

China 1600 Hours Rubber Plastic Uv Accelerated Weathering Tester Touch Screen supplier
1600 Hours Rubber Plastic Uv Accelerated Weathering Tester Touch Screen supplier 1600 Hours Rubber Plastic Uv Accelerated Weathering Tester Touch Screen supplier

Large Image :  1600 Hours Rubber Plastic Uv Accelerated Weathering Tester Touch Screen

Product Details:

Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-9029B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: Standard size in stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Usage: Process Testing Machine System: Chinese,English Optional
Operation: LCD Or PC OEM Orde: Acceptable
Temperature Range: RT+20℃~70℃ Humidity Range: ≥90%RH
Lifetime Of Lamp: 1600 Hours Power: 1 Phase, 220V/50Hz /±10% 5KW
Testing Time: 0~999H, Adjustable

1600 Hours Rubber Plastic Uv Accelerated Weathering Tester Touch Screen





Product Applications:



UV accelerated weathering test chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.





Corresponding standard:



ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020





Technical Parameter:



Model KJ-9029
Test chamber size(L×W×H)MM 1170×450×500
Outside dimension(L×W×H)MM 1350×540×1480
Chamber materials 304# stainless steel
Temperature range RT+20℃~70℃
Temperature uniformity: ±1℃
Temperature fluctuation: ±0.5℃
Temperature control PID SSR control
Humidity range ≥90%RH
Controller TEMI 880 programmable controller, touch screen, LCD display
Control mode Balance temperature humidity control (BTHC)
Communication function Be able to control the machine via computer using TEMI control software through RS-232 port on the machine
Test cycle setting Illumination, condensation and water spray test cycle is programmable
Distance from specimen to lamp 50±3mm (adjustable)
Center distance between the lamps 70mm
Lamp power & length 40W/Piece, 1200mm/Piece
Lamps amount 8 pieces of UVA-340 or UVB-313 imported lamps
Lifetime of lamp 1600Hours
Irradiance 1.0W/m2, adjustable directly on TEMI 880 touch screen controller
Wavelength of ultraviolet light UVA is 315-400nm and UVB 280-315nm
Effective irradiation area 900×210mm
Irradiation black panel temperature 50℃~70℃
Standard specimen size 75×290mm/24 pieces
Water depth for water channel 25mm, automatically control
Water consumption 8L/day, tap water or distilled water
Testing time 0~999H, adjustable
Power 1 phase, 220V/50Hz /±10% 5KW
Protection Overload short circuit protection, over temperature protection, water lacking protection





Standard accessories:



1. One copy of English user guide.

2. One CD of controller software and operation instruction video.





Kindly note:



1. Please advise whether 8 UVA or 8 UVB lamps are needed when order.

2. UVA-340 lamps can well simulate the natural outdoor exposure. UVB-313 lamps are able to do accelerated test more quickly via stronger irradiation.





Safety protection:



1. Ground fault protection

2. Power overload, short circuit breaker

3. Control circuit overload, short circuit fuse

4. Water lacking protection

5. Over-temperature protection





Usage requirements:



1. Environmental temperature: 5℃~+32℃

2. Environmental humidity: ≤85% 3. Power requirement: AC220(±10%)V/50HZ

4. Capacity: 5KW

5. Fine grounding





Pictures:

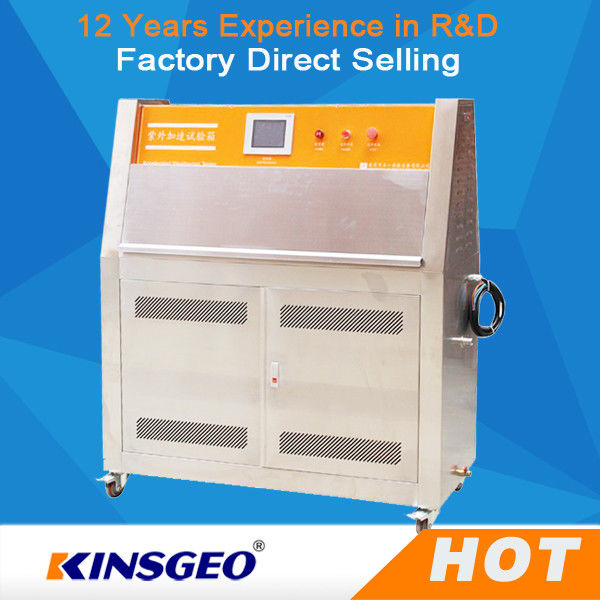

1600 Hours Rubber Plastic Uv Accelerated Weathering Tester Touch Screen
