150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial

China 150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial supplier
150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial supplier 150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial supplier 150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial supplier 150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial supplier 150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial supplier

Large Image :  150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial

Product Details:

Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-2097

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: Standard size in stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Usage: Process Testing Machine System: Chinese,English Optional
Operation: LCD Or PC OEM Orde: Acceptable
Environment Requirement: 5~30℃,stable Floor, Draughty,no Heat Source Radiation Nozzle Qty: 1681-2601 Pcs
Temperatur Range: -20~150℃ \ -30~150℃ \ -40~150℃ \ -50~150℃ \-60~150℃ \ -70~150℃ Heating Time: Max Fastest 20℃/min(no-load)
Appearance: Cold-roll Steel Sheets, Corner Circular Arc Refrigerating Fluid: R23\R404A



150L R23R404A​ Programmable Constant Temperature Humidity Test Chamber For Electronic Industrial





Design Standards:



1. GB/T2423.22-2002

2. IEC 60068-2-14:1984

3. GB/T2423.1-2001 (IEC 60068-2-1:1990)

4. GB/T2423.2-2001 (IEC 60068-2-2:1974)

5. GB/T2423.13-2002 (IEC 60068-2-33:1971)

6. IEC600682-33:1997

7. GB/T 2424.13-2002/IEC60068-2-33:1971





Use:



This faster temperature (& humidity) chamber enables the application of high

Stress to the specimen at a steep temperature change rate of 5℃/min. or more. A temperature change rate of 5℃ /min. or more has been achieved from -75℃⇔+150℃, and from -18℃⇔+158℃, thanks to the larger refrigeration systems in this mode.It consists of cooling system,heating system,controlling system,air cycle system,sensor system.

Used in equipments, chemistry,plastic rubber, electron,food,frabic,metal, aerospace industry.Simulate the temperature fast temperature changing condition,to check the product performance if changed in this condition.





Specification:



Model 80L 150L 225L 408L 500L 1000L

Inner size

(mm)

Deep 400 500 500 600 700 1000
Width 400 500 600 800 800 1000
Height 500 600 750 850 900 1000
Environment Requirement 5~30℃,stable floor, draughty,no heat source radiation
performance parameter Temperatur range -20~150℃ -30~150℃ -40~150℃ -50~150℃ -60~150℃ -70~150℃
Temperature uniformity ±1.0℃
Temperature fluctuation ±0.5℃
Heating Time Max fastest 20℃/min(no-load)
Cooling Time 3℃/min,5℃/min,10℃/min,15℃/min(no-load)
Appearance cold-roll steel sheets, Corner circular arc
Material antirust Good antirust function
Inner container SUS304/2B steel plates,inner containers designed by arc
thermal insulation material superfine glass heat preservation cotton or polyurethane foaming
Motor heat dissipation Chamber is deeper,with aerofoil fan, improve the motor heat dissipation
Heater stainless steel Fins heating element
Observe Window conducting film electric heating
seal washer Silica, sealing strips
pressure fan centrifugal impeller
Cooling System Compressor France Taikang
refrigeration Mechanical compress single stage/ Cascade refrigeration,water refrigeration;
condenser Fins radiator,long-lived outer rotor motor
refrigerating fluid R23R404A
configuration Imported refrigeration configuration
Controller Programmable controller,7.2 inch LCD touched display,Chinese English menu,PID Seting,record automatically,support connecting computer by USB.
Safety earth leakage protection,motor overcurrent protection,compresor overpressure protection,high temperature protection......
configuration Sample shelf,1pcs, ф50mm wire hole,1 pcs, floodlight 1pcs





Good Packaging:



Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.





Pictures:

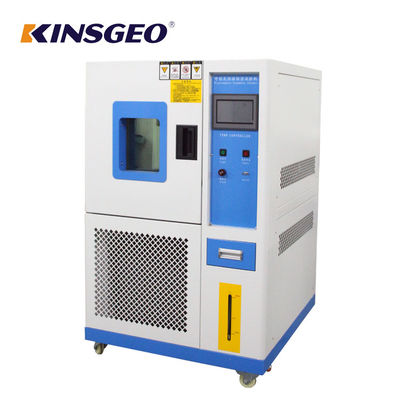

150L R23\R404A Programmable Temperature And Humidity Controlled Chambers For Electronic Industrial
