Product Details:
Payment & Shipping Terms:
|
| Usage: | Process Testing Machine | System: | Chinese,English Optional |
|---|---|---|---|
| Operation: | LCD Or PC | OEM Orde: | Acceptable |
| Temperature Range: | RT～1200℃ | Accuracy: | ±1 |
| Power: | 220V Or 380V | Heating Time: | RT～1200℃ About 60 Minutes |
| High Light: | environmental testing equipment,thermal shock test chamber |
||

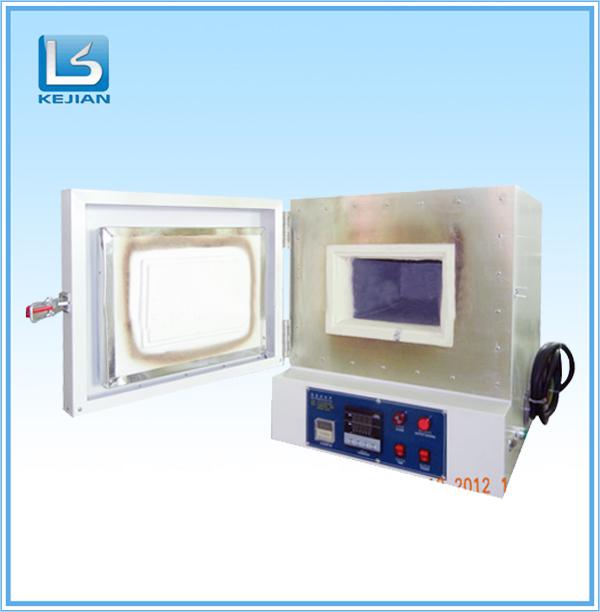

Electronic Desktop Type Industrial Metal Surface High Temperature Muffle Furnace Environmental Test Chambers
Uses:
Muffle furnace is engineered to heat electronic component andplastic chemical products to test aging performance. These muffle are used for annealing, heating, sintering, melting, incinerating or hardening metals.
Standards:
GB212-77
Characters:
1. The external material is SECC steel plate,baking finish. The innar material is silicon carbide ceramics.
2. Top heating element has longlife character.
3. Temperature is controlled automatically by PID.
4. The furnace permits faster heat-up and reduce energy consumption.
5. Over temperature protection and over-load protection
6. Cyclic system:thermal radiation APO
7. Gas furnace
8. PID temperature controller meets full automatic constant temperature function.
9. Timer:Timekeeping when up to the presetting temperature,power outage alarm indication.
10. It can be customized according to customer specifications.
specifications:
| Model | A | B | C |
| Inner size | 12×8×20 | 25×16×40 | 30×20×50 |
| External size | 42×67×48 | 42×67×48 | 62×87×58 |
| Temperature range(℃) | RT～1200℃ | ||
| Heating time | RT～1200℃ about 60 minutes | ||
| Accuracy | ±1 | ||
| Power | 220V or 380V | ||
| Rate of work | 3 | 8 | |
Features:
"TEMI-880" large color LCD touched screen temperature and humidity controller.
Real-time display program running time, the number of segments, the remaining time, repeat frequency, can display
experimental data, including the pre-set segment time,heating status,calendar time,etc; temperature and humidity directly
digital display.
Apply Controllable Silicon Step-less Adjusting Technology to adjusting temperature and humidity continuously and
precisely, and without over heated as the PID adjusting function.
Workroom made by high quality stainless steel.
The thermal insulation materials between outside chamber and inside chamber is high - quality ultra-fine glass fiber
insulation cotton, good thermal insulation effectivity.
RFQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.
3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
