180 Degree Peel Adhesion Test Equipment For PSTC ASTM High Speed

180 Degree Peel Adhesion Test Equipment For PSTC ASTM High Speed
180 Degree Peel Adhesion Test Equipment For PSTC ASTM High Speed 180 Degree Peel Adhesion Test Equipment For PSTC ASTM High Speed 180 Degree Peel Adhesion Test Equipment For PSTC ASTM High Speed

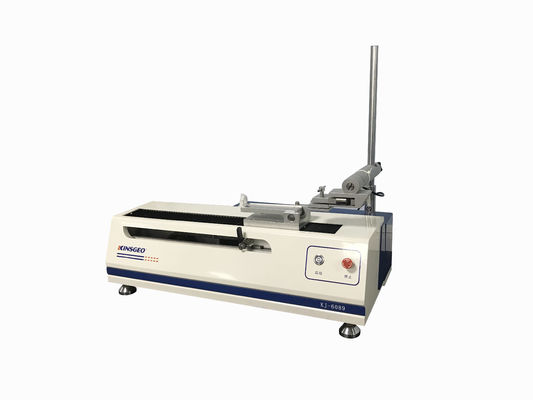

Large Image :  180 Degree Peel Adhesion Test Equipment For PSTC ASTM High Speed

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-6089
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after we confirmed order
Payment Terms: T/T, Western Union, MoneyGram, L/C, T/T
Supply Ability: 5000 Sets/Year
Contact Now
Detailed Product Description
Product Name: Peel Strength Testing Machine Load Cell: 2KG, 5KG, 10KG, 20KG
Power: 220V/50HZ Weight: 42KG
Temperature: 0~70°C Speed: 100mm/min~30m/min
High Light:

180 degree Peel Adhesion Test Equipment

,

PSTC Peel Adhesion Test Equipment

,

ASTM 180 degree peel adhesion test

220V 5KG High Speed Peel Adhesion Strength Test Equipment For Tape

Usage

This machine is suitable for PSTC, ASTM, TLMI, FINAT and AFERA specifications, as well as 90°, 180° can be used, the most convenient universal tension machine.

This instrument is the release force test, peeling force test is improved. It combines the wishes of people all over the world who have a common need for adhesion and release force.

It can be combined with relevant data collection and processing system and Kinsgeo operating software to master the work of data collection and analysis as a whole.

Equipment advantages:

- Can adapt to a variety of domestic and foreign standards for stripping test.
- The test speed is adjustable from 100mm/min to 15m/min.
- It can be peeled from a variety of angles between 90° and 180°.
- The first machine in China, specializing in photoelectric material industry design.
- The sampling frequency of the point can reach 1000 times/second, which is higher than the sampling frequency of the imported machine, and you can choose according to your own needs! Can make the power curve more realistic.
- The use of high-speed chain structure, no impact of acceleration, the traditional screw drive, acceleration process, the test has been completed, so the data is not accurate.

Test:

The free end of the sample is folded in half 180 degrees, and peeled off from the test board, the adhesive surface is 25mm. The free end of the sample and the test plate are separately clamped on the upper and lower grippers. The peel surface should be consistent with the force line of the testing machine. The testing machine is continuously peeled at a peeling speed of 10M/min, and the peeling curve is drawn by an automatic recorder



Product Description



Voltage
AC 220V/ 50Hz
Size (H*W*D) cm
A: 61*91*33 CM, B: 61*120*33 CM
Weight (KG)
42KG
Load Cell
2KG, 5KG, 10KG, 20KG
Adhesion Force
10KG or 5KG
Release Force
2KG or 5KG
Speed
100mm/min - 15m/min
Angle
90° - 180°
Temperature
0° C - 70°C


KeJian Instrument Service:


Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service



Contact Us:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.



Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
