5kg-5T Tensile Testing Machine , Constant Universal Test Equipment

5kg-5T Tensile Testing Machine , Constant Universal Test Equipment
5kg-5T Tensile Testing Machine , Constant Universal Test Equipment 5kg-5T Tensile Testing Machine , Constant Universal Test Equipment 5kg-5T Tensile Testing Machine , Constant Universal Test Equipment

Large Image :  5kg-5T Tensile Testing Machine , Constant Universal Test Equipment

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: KJ-1067
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after we confirmed order
Payment Terms: T/T, Western Union, MoneyGram, L/C, T/T
Supply Ability: 5000 Sets/Year
Detailed Product Description
Control Stability: ±2.5%RH, 1℃ Degree Of Load Decomposition: 1/25,000
ACCURACY: ±0.5% CAPACITY: 5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg
Size Of Inner Box: 40×40×70cm(customized) APLICATION: Rubber ,plastic ,nylon ,leather And Etc
High Light:

5kgtensile testing machine

,

Constant tensile testing machine

,

5T universal test equipment

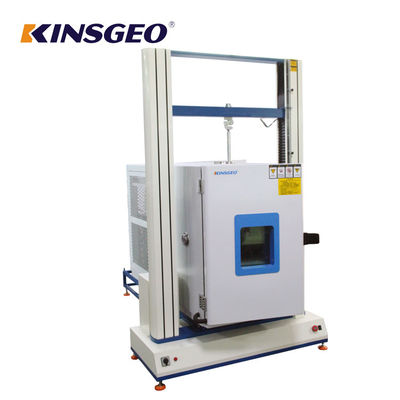

5-5T Constant Temperature Type Universal Tape Peel Tensile Testing Machine



Feature:

Peel strength Tester KJ-1067 combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process. Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.





Character:

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.

2. The Motor use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.

3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

4. Have steady performace, high accuracy, powerful software function and easy operation.

5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.



Product Description



Temperature range -40°C-150°C
Humidity range 20%HR-98%RH
Capacity 2,5,10,20,50,100,200,500,1000kg
Choosing capacity 3 to 10 times of the most value about the specimen damage
Unit

g,kg,N,KN,LB( switchover free)



Operation method

Windows operation



Resolution 1/2500,000
Accuracy ≤0.5%
Testing speed 1~500mm/min
Stroke 400,500,600mm(Height can be customed)
Test width

40cm(can be changed by customer needs)



Test space (L×W×H)40×40×70cm
Motor Panasonic servo motor
Kind of drive high-precision ball screw
Dimension (W×D×H)1200×600×1500mm
Weight 200kg
Power 1φ,220V/50Hz
Rate of work 0.4KW(depend on motor model)
Clamp

customize by customer needs(tensile and compressive clamp)





KeJian Instrument Service:

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service



Contact Us:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.



Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
