Product Details:
Payment & Shipping Terms:
|
| Usage: | Shock Constant Humidity Cooling Test Chamber | System: | Chinese,English Optional |
|---|---|---|---|
| OEM Orde: | Acceptable | Temperature Range: | High Temperature Zone:normal~+150°C |
| Hoting&cooling Speed: | 1.5°C Per Minute Average | Power: | 7.5KW 12KW 26KW 15KW AC380V/50Kz, Three Phase |
| Impact Method: | Cylinder Conversion | Controllor: | Programmable Temperature Controllor In Japan |
| Temp Method: | Computer P.I.D.automatic Control | External Materials: | SUS#304 Stainless Steel |
| High Light: | IEC climatic test chamber,12KW climatic test chamber,IEC thermal shock test chamber |
||

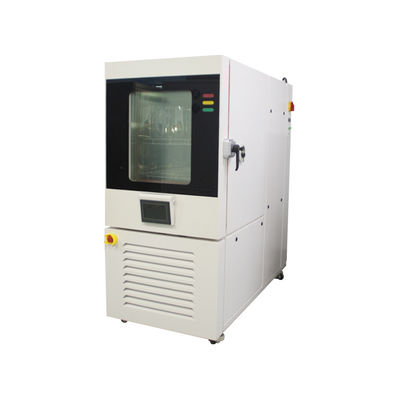

Climatic Thermal Shock Constant Humidity Cooling Test Chamber Environmental Chamber
Uses:
Thermal Shock Test Chamber is applicable to high&low temperature impacting test for electronic components and materials. The thermal shock chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
Characters:
1. The most advanced new and Euramerican explosion-proof handle, perfect modelling design, high texture appearance.
2. Use large human-computer touch conversational LED man-machine interface controller, simple operation, easy to learn, it is stable and reliable.
3. The way of shock is changing the wind grid to pull the cold and hot temperature into testing area to enforce test.
4. Shocking time:0.1~999.9h; cycle period:1~9999times, settable.
5. Cycle and defrost ing count can be set, so does automatic defrosting or manul defrosting.
6. It shows the the status and curve when working together with explaination and eliminateing method when stoppage.
7. Euramerican imported efficient repeated compressing freezing unit, low noise, energy saving.
8. Use PID automatic calculating control, high precision of temperature control.
9. Can make automatic cycle shock or manual selective shock and can choose two groove or three groove cold , heat shock.
10. Can use as a high temperature boc or low temperatue box independently.
11. Use environmental refrigerants R404,R23 whitch cause no poluution to the ozone.
Brief Introduction
High Efficiently Thermal Shock Chamber Cold Hot Impact Test /machines and equipments is also known as hot and cold impact testing machine used to test or composite material structure, in an instant by the extremely high temperature and low temperature under continuous environment can endure degree, in order to test in the shortest possible time chemical changes caused by heat bilges cold shrink or physical damage. Applicable to metal and plastic, rubber, electronic...Such as material, can be used as the basis of its product improvements or reference.
Features
1. The thermal shock tester is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber.
2. The color touch panel control system was made in Japan can display Chinese/English. The big size liquid-crystal LCD has been adopted.
3. High temperature shock or low temperature impact, the maximum time up to 999H, the maximum cycle up to 9999 times.
4. All equipment is fully automatic, and all process are precisely controlled with P.L.C.’S.
5. Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.
6. Machine can be shut down automatically in case of electrical power instabilities.
7. Can test the impact of RT,perform to meet the standards and test method: GJB150.5;GJB360.7;GB/2423.22
Specifications:
| Test chamber size | 46×46×46cm | 56×66×56cm | 68×68×65cm |
80×80×76cm
|
| Shelves size | 36×36cm | 46×56cm | 60×60cm | 70×70cm |
| Temperature range | High temperature zone:normal~+150°C | |||
|
Low temperature zone:normal~-60°C
|
||||
| Hoting&cooling speed | 1.5°C per minute average | |||
| Temperature fluctuation | less than ±0.5°C | |||
| Temperature deviation | less than ±2°C | |||
| Temperature conversion time |
less than 10s
|
|||
| Temperature recovery time | less than 5min | |||
| Impact method |
cylinder conversion
|
|||
| Materials |
external materials:SUS#304 stainless steel
|
|||
| Internal materials: SUS#304 stainless steel | ||||
| Cooling system |
water-cooled or air-cooled, Taikang compressor in Franch, environment friendly refrigerant
|
|||
| Controller | programmable temperature controller in Japan | |||
| Standard accessories | view windos, cable hole, lighting devices | |||
| Design standard | GB/GJB/IEC/MIL | |||
| Power |
7.5KW 12KW 26KW 15KW AC380V/50Kz, three phase |
|||
| Remarks | It can customize by customer demands. Technology index refer to product description. |
|||
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
FAQ:
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
