Product Details:
Payment & Shipping Terms:
|
| Power: | AC220V 50HZ | Usage: | Haze Measuring Instrument |
|---|---|---|---|
| Product Name: | Transmittance Measuring | Warranty: | 12 Months |
| Weight: | 21KG | Accuracy: | 0.1% |
| Environmental Condition: | 10~30 Centigrade Degree | ||
| High Light: | ASTM D1003 High Precision Haze Tester,ASTM D1003 Light Transmit Tester,ISO1346 Light Transmit Tester |
||

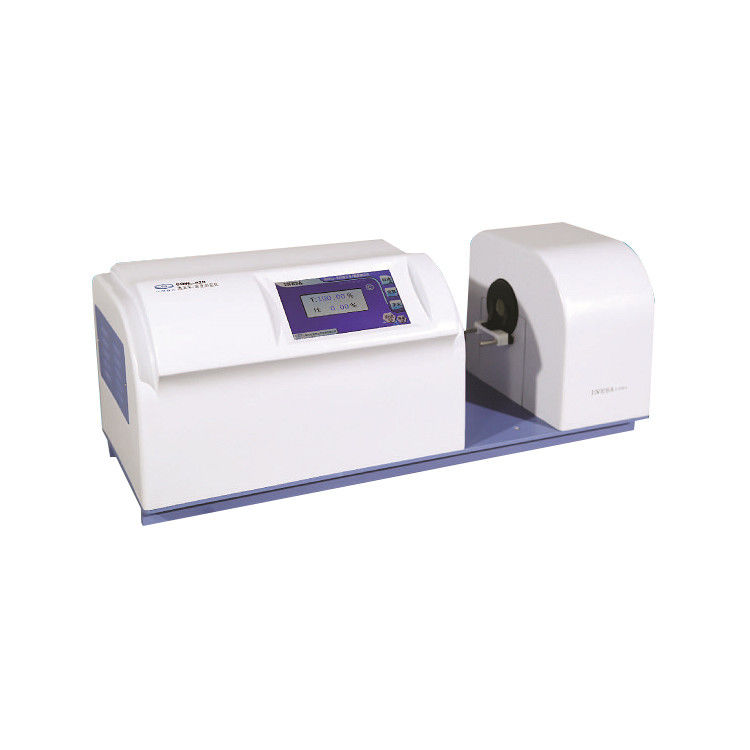

ASTM D1003 ISO1346 High Precision Haze Tester And Light Transmit Tester
Standard
GB2410-80, ASTM D1033-61(1997), JISK7105-81 and etc.
Usage
It is suitable for the test of all transparent and translucent parallel planes materials’ transparency and haze. It adopts automatic operation of microcomputer which is easy to use. Applicable industries: scientific research institute, college, plastic products, packaging film, coating, ink and so on.
Technical Parameter
| Measuring range | |
| Light transmittance | 0～100%. Haze: 0～30% |
| Sample size | 50×50mm |
| Machine size(L×W×H) | 470×270×160mm |
| Net weight of machine | 7kg |
| Power | 220V 22V 50Hz 1φ |
| Environmental condition | 10～30oC |
| Preheating time | 10 minutes |
| Accuracy |
Light transmittance: 1.5% Haze≤0.5% |
| Repeatability |
Light transmittance: 0.5% Haze≤0.5% |
| Z optical system | |
| Collimation lighting, diffusion view, integrating sphere receive mode | |
| Sample size | 25×21mm |
| Light source | C light source(DC12V6W) |
| Receiver | Silicon light battery+Luminosity function inset tab |
| Electronic system | LED digital display |
| Minimum indication |
Light transmittance: 0.1% Haze: 0.1% |
