0.001mm Coordinate Computer Measuring Machines For FPC PCB

0.001mm Coordinate Computer Measuring Machines For FPC PCB

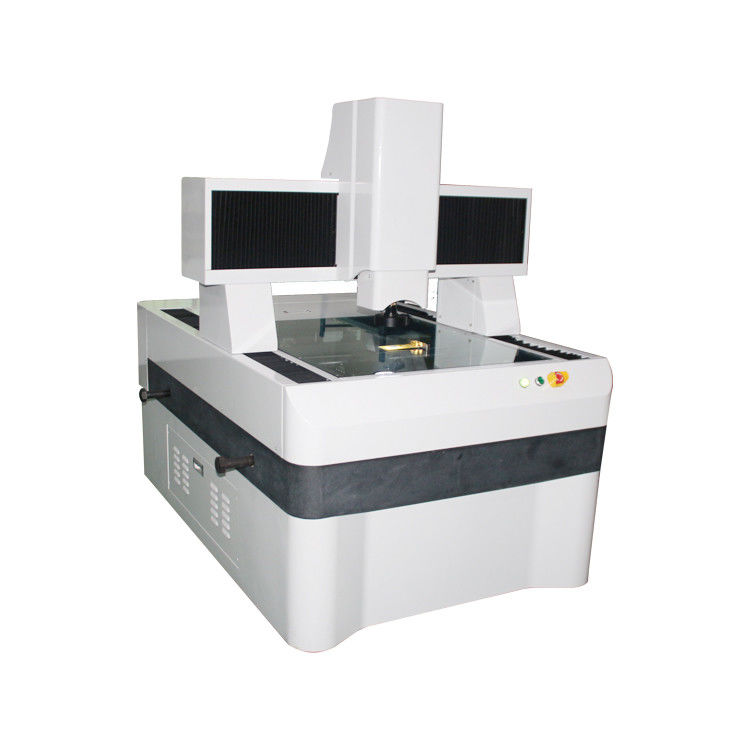

0.001mm Coordinate Computer Measuring Machines For FPC PCB 0.001mm Coordinate Computer Measuring Machines For FPC PCB

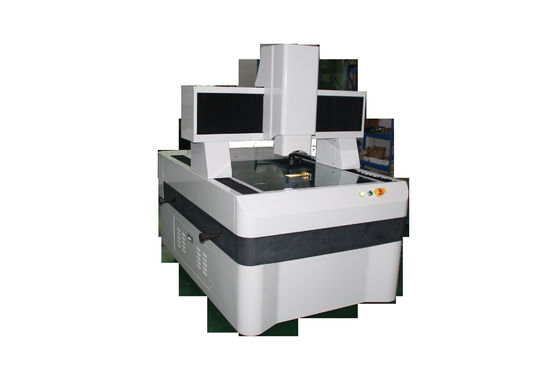

Large Image :  0.001mm Coordinate Computer Measuring Machines For FPC PCB

Product Details:
Place of Origin: China
Brand Name: Kejian
Model Number: KJ-CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 5000/Set
Packaging Details: wooden
Delivery Time: 5 work days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Set/Week
Detailed Product Description
Product Name: Fully Automatic Image Measuring Instrument Measuring Range: 300*200*200
Working Distance: 92mm Display Resolution: 0.001mm
Resolution: 1um, 0.5um For Option Warranty: 1 Year
High Light:

0.001mm Computer Measuring Machines

,

FPC Computer Measuring Machines

,

PCBComputer Measuring Machines

New Design 0.001mm Coordinate Computer Measuring Machines For FPC PCB



Standard Series Automatic Vision Measurement Machine

Standard series full automatic vision measurement machine is with Full CNC close-loop axis motion control, using UWC 4000i series controller, servo motors and joystick, ensures stable and fast movement, increase the measuring accuracy and efficiency. Also the package solution for the control system offers stable performance of the machine, minimizing the maintenance.



Parameters
Item
Standard 322 CNC
Standard 432 CNC
Standard 542 CNC
Dimension(mm)
650 x 550 x 935
800 x 700 x 1000
1100 x 800 x 1030
Measuring range

X
300
400
500
Y
200
300
400
Z
200
200
200
Working stage
Stage size
460 x 360
560 x 460
660 x 560
Glass size
340 x 240
440 x 340
540 x 440
Max. loading
25kg
25kg
25kg
Image and measuring system
CCD
Industrial color 1/3" CCD camera
Lens
Manual dented zoom lens 0.7 - 4.5X (Navitar zoom lens for option)
Magnification
18 - 188 X
Field of view(mm)
11.1 - 1.7
Working distance
92mm
Display resolution
0.001mm
Measuring Accuracy(um)
Optical
E1x, E1y=3+L/200
E1z=3.9+L/200
E2xy=3.0+L/150
Probe
E3=3.5+L/100
Resolution
1um, 0.5um for option
Operation mode
Integrated intelligent control(joystick, mouse, keyboard)
Illumination
Programmable LED surface ring light, 8 sections, parallel contour light
Power supply
220V±10% AC 50Hz, resistance<=4 ohm ground should be required
Working environment
Temperature 18-24 °C, humidity 30 - 75%, avoiding vibration
Accessories



Illumination

★ 4 sections surface ring LED light
★8 sections surface ring LED light
★40 sections surface ring LED light

★40 sections color surface ring LED light.



Lens

★Manual dented zoom lens
★Co-axial optical manual zoom lens
★Auto zoom lens
★Co-axial optical auto zoom lens



Probes

★Renishaw MCP touch probe kits, probe measuring error <=0.75

★Renishaw PH6+TP20 touch probe kits, probe measuring error <=0.35



Company Information:



Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.



Kejian Service:



1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or
damaged by people on purpose.


2).Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and
commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.

3).Certificate services: Complying with our clients' request, we can provide related certificates to clients freely

4).Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .
