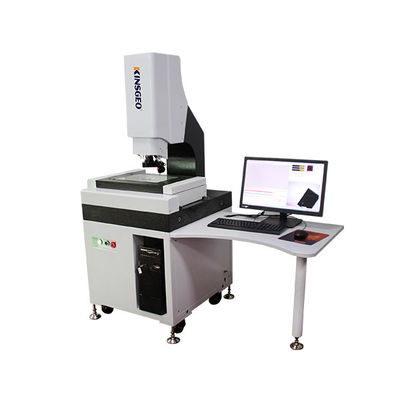

2D Image Video Coordinate Measuring Machines CE GS Certificated

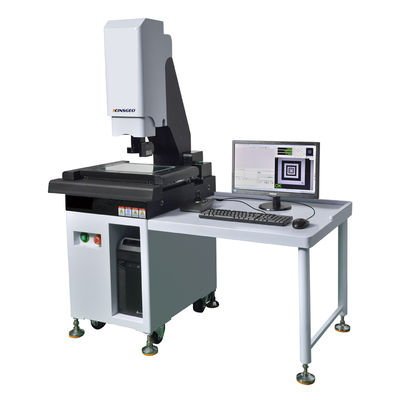

2D Image Video Coordinate Measuring Machines CE GS Certificated

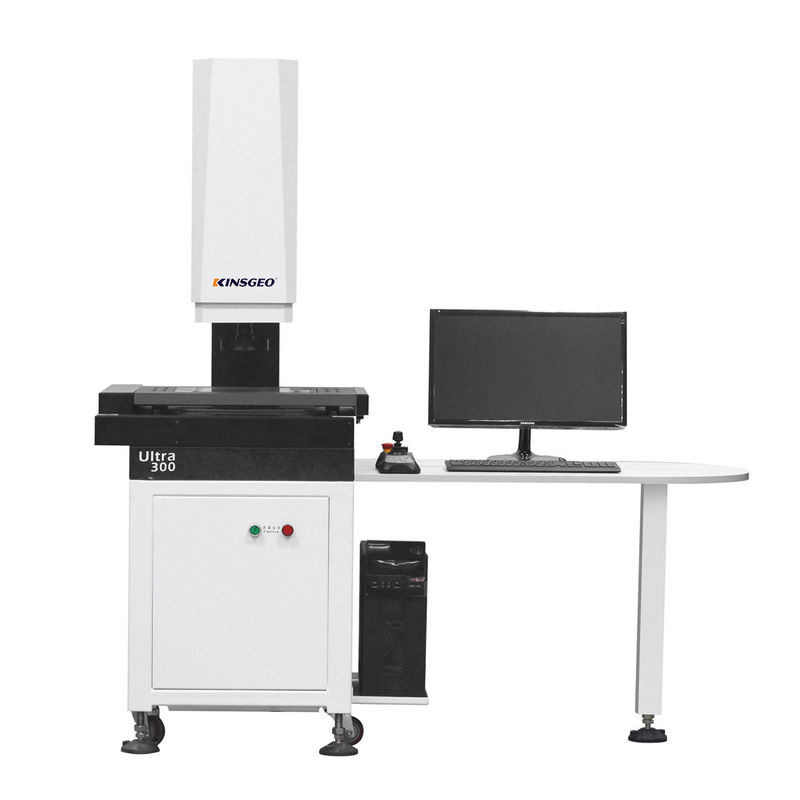

2D Image Video Coordinate Measuring Machines CE GS Certificated

Large Image :  2D Image Video Coordinate Measuring Machines CE GS Certificated

Product Details:
Place of Origin: CHINA
Brand Name: KEJIAN
Certification: CE GS
Model Number: KJ-VMC
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: 6500USD
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Detailed Product Description
Product Name: 2D Image Measuring Instrument Test Distance(mm) X*Y*Z: 300x200x200
X Y Axis Accuracy(μm): ≤3+L/200(L Is The Unit Of Measure Mm) Working Distance: 82mm
Resolution: 0.1μm Objective Magnification: 0.7X-4.5X
Composite Multiple: 20~128X Warranty: 12 Months
High Light:

GS Coordinate Measuring Machines

,

CE Coordinate Measuring Machines

,

GS 2d video Measuring Instrument

3D Coordinate Measurement Optical Image Measuring Machine



Instructions

VMC is a fully automatic image measuring instrument developed for product measurement applications. It adopts flexible manual variable times, optimized hardware and software configuration, and perfectly realizes the full automatic measurement requirements of various 2D sizes in batches, widely used in mold, precision hardware, mobile phone panels, glass, touch screen and other industries.



Features

It has the function of data processing, display, input and output, and the accuracy of measurement image

is extremely high.After connecting with the computer there is special measurement software to measure.



Technical Parameter

Model 2010(Manual) 3020(Manual) 4030(Manual)
Size of machine body 600×500×850mm 850×600×900mm 970×670×940mm
Size of metal platform 345×250mm 450×350mm 650×350mm
Size of glass platform 220×150mm 340×240mm 480×370mm
Actual working stroke 200×100×130mm 300×200×150mm 400×300×150mm
Weight of machine body 100kg 200kg 250kg
Machine pedestal 00 Level Granite
Linear accuracy 3+L/75µm
Surface lighting LED ring form super bright cold light source(luminance adjustable)
Outline shining LED super bright roundness light(luminance adjustable)
Calculation measurement REICA 2.5D Precise measurement system software
Analysis force 0.001mm
Repeat accuracy 0.002mm
Resolution of optical scale 0.001MM
CCD Standard equipment: SONY chip1/3 color CCD

Eyepiece

Standard equipment: 0.5X(can choose 1X,2X)
Object glass 0.7X~4.5X Amplification factor: 20X~120X
Grating ruler Standard equipment: Qingdao Qihai brand. Resolution: 1µm.
Power supply AC90~264V, 50/60Hz
Light source material LED cold light source(two groups, luminance can be adjustable)
Accuracy 3+L/150um National standard
Load 30KG
Operating method Manual shake(fine adjustment and fast movement)
Input power 90~264VAC, 47~63Hz, 10AMP
Environmental demand of lab

Temperature: 20±2℃. Humidity: 40%~70%. Vibration: <2℃/hr.

Dust prevention: <15Hz. Avoid strong magnetoelectricity.
