| Product Name: | Adhesive Shear Strength Tester | Accuracy Class: | 0.5 Class |
|---|---|---|---|
| Resolution Of Testing Force: | 1/25000 | Speed Accuracy: | 0.05～500mm/min |
| Effective Range Of Force: | 0.02/100～100% | Capacity: | 1, 2, 5, 10,20,50,100,200 Kg |
| Warranty: | 12 Months | ||
| High Light: | KEJIAN Peel Adhesion Test Equipment,200kg Peel Adhesion Test Equipment,KEJIAN peel test machine |
||

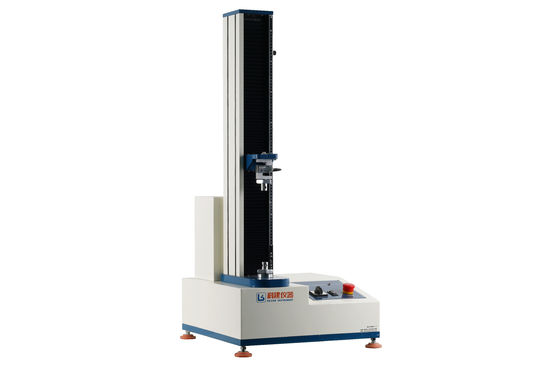

KEJIAN High-Precision Peel Release Strength Tester Peeling Testing Machine
Use
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, textiles, paper, board and finished products.
Character
1. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady performance, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.Machine accuracy is ±0.5%.
Accessories
1. Suitable Grips that meet customer sample need.
2. Special peeling tools for peel test in tape&film industry.
3. Software for test control,data acquisition and report.
4. English operation teach video.
5. Tabal,computer is selectable.
Specification
| Design Standards |
ASTM D903,, CNS11888, JIS K6854, PSTC7,,ASTM E4,ASTM D1876,ASTM F2256,EN1719,EN 1939,ISO 11339,ISO 36,EN 1465,ISO 13007,ISO 4587,ASTM C663,ASTM D1335,ASTM D3330,ASTM F2458,EN 1465,ISO 2411,ISO 4587,ISO/TS 11405,ASTM D5034, ASTM D4632
|
|
| Model | KJ-1065A | KJ-1065B |
| Range of speed | 0.5-500mm/min | 50-500mm/min |
| Motor | Japan Panasonic Motor | Servo motor |
| Capacity choice | 20kg | 20kg |
| Resolution | 1/150,000 | 1/250,000 |
| Effective testing spec |
120mmMAX
|
|
| Accuracy | ±0.5% | |
| Operation method | Windows operation | |
| Optional accessories |
stretcher, air clamp,computer, printer, system operation manual
|
|
| Weight | 80KG | |
| Dimension | (W×D×H)58×58×125cm | |
| Power | 1PH, AC220V, 50/60Hz | |
| Stroke protection | Upper and lower protection, prevent over preset | |
| Force protection | system setting | |
| Emergency stop device | Handling emergencies | |
